Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 172.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513203

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

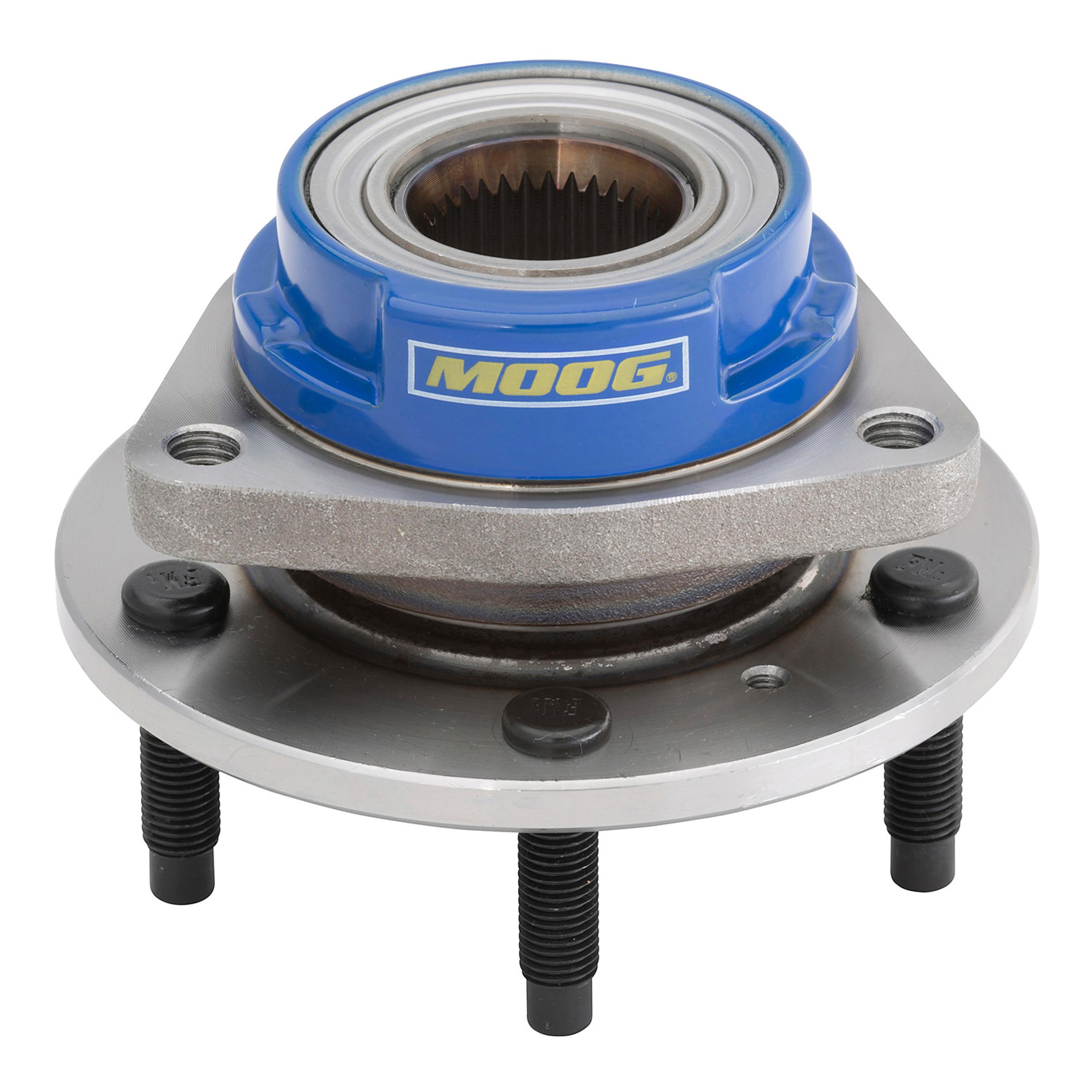

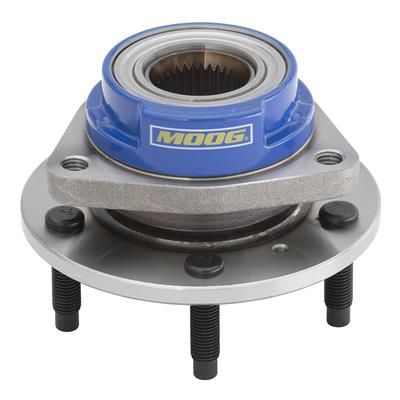

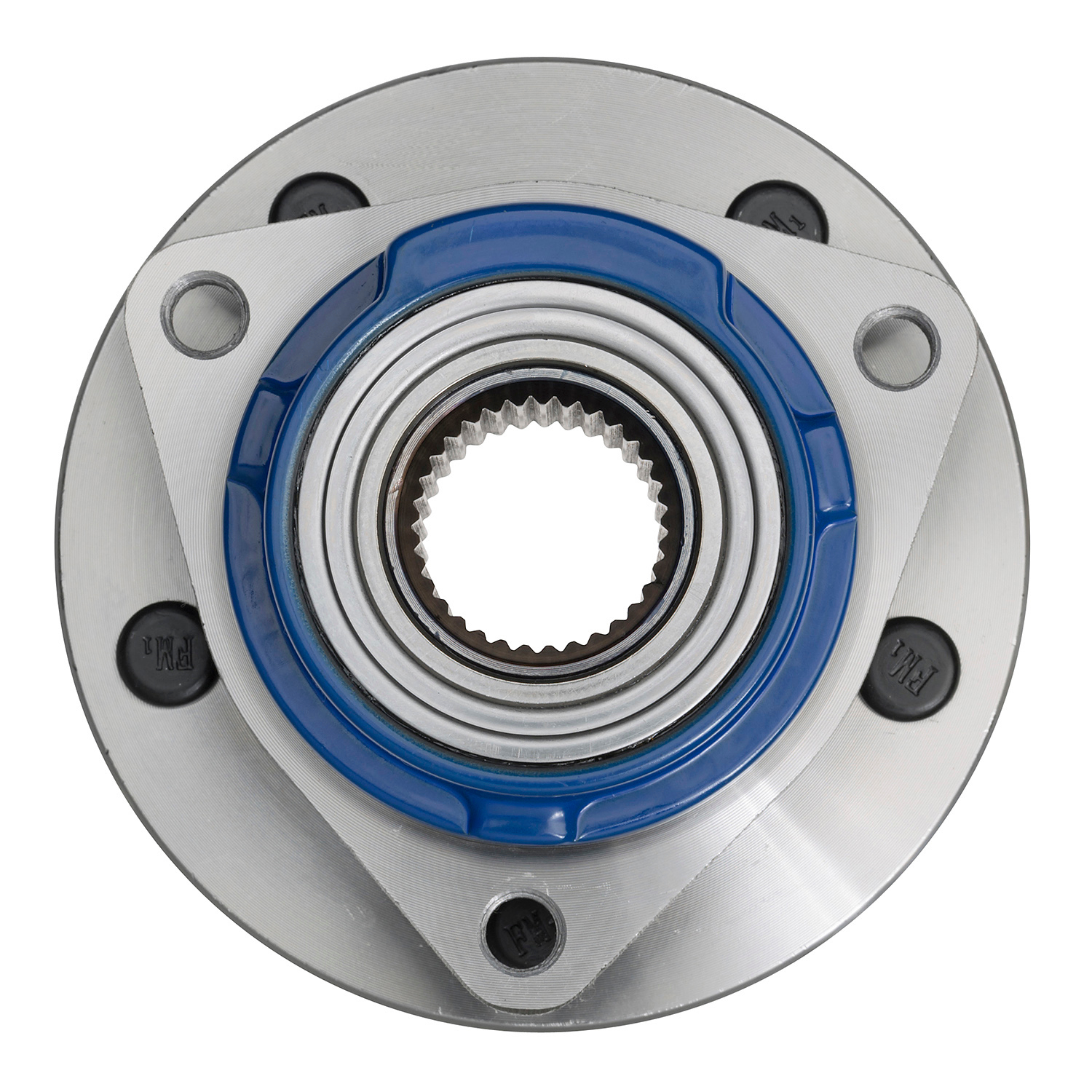

Front Wheel Bearing and Hub Assembly

Part # 513203 | Line Code: BRG

$172.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Brake Pilot Diameter	70.600
Flange Shape	MODIFIED
Spline Quantity	33
Anti Lock Brake Sensor Included	No
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	70.100
Flange Bolt Hole Quantity	3
Wheel Stud Quantity	5
Bolt Circle Diameter	4.527
Flange Diameter	145.500
Prop 65 Label (Yes/No)	No
Flange Offset	42.100
Hub Pilot Diameter	91.400
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2005 Buick LaCrosse (Front) (ABS: Non-ABS); 2005 Buick Allure (Front) (ABS: Non-ABS); 2003-2005 Buick Century (Front) (ABS: Non-ABS); 2003-2004 Buick Regal (Front) (ABS: Non-ABS); 2003-2007 Buick Rendezvous (Front) (ABS: Non-ABS & Drive: FWD); 2000-2008 Chevrolet Impala (Front) (ABS: Non-ABS); 2003-2007 Chevrolet Monte Carlo (Front) (ABS: Non-ABS); 2003-2005 Chevrolet Venture (Front) (ABS: Non-ABS & Drive: FWD); 2003-2005 Pontiac Aztek (Front) (ABS: Non-ABS & Drive: FWD); 2003-2008 Pontiac Grand Prix (Front) (ABS: Non-ABS); 2003-2005 Pontiac Montana Base (Front) (ABS: Non-ABS & Drive: FWD)
