Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 146.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513205

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

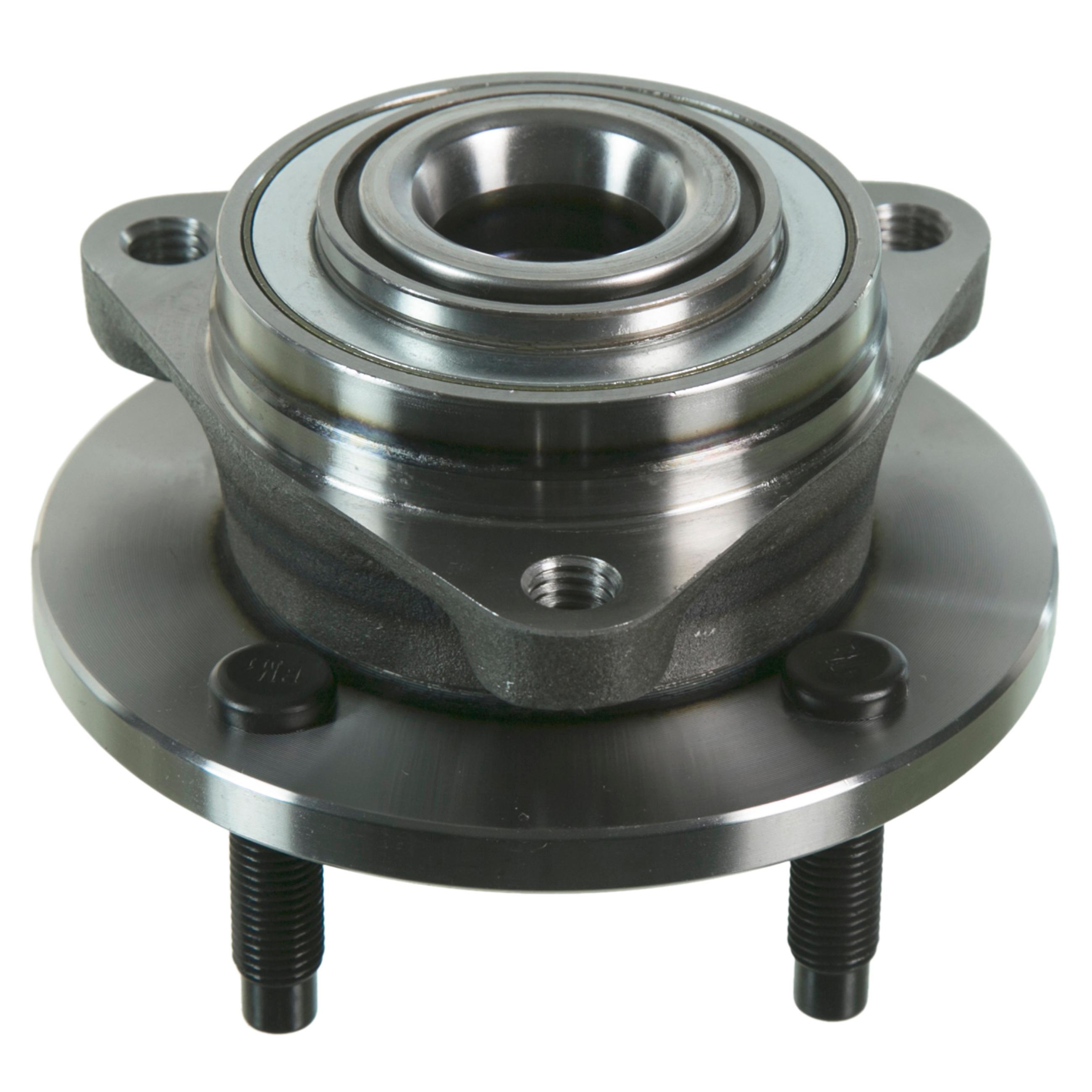

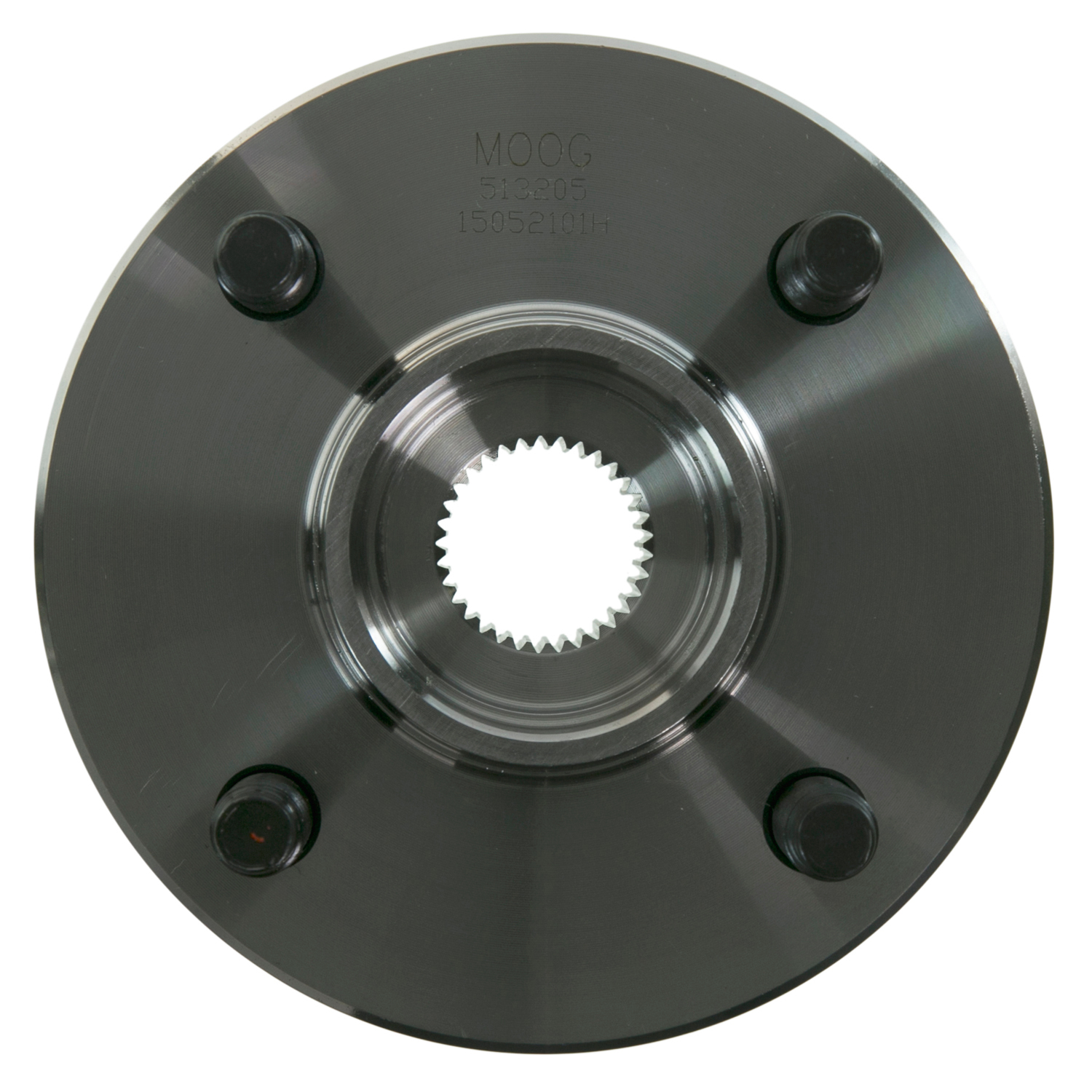

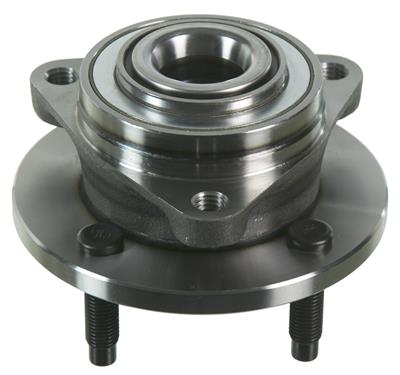

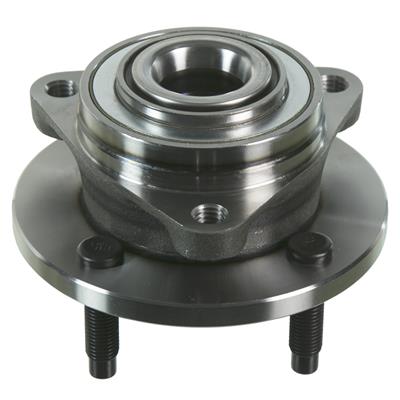

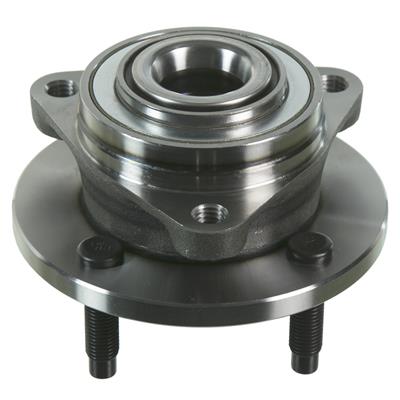

Front Wheel Bearing and Hub Assembly

Part # 513205 | Line Code: BRG

$146.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Shipping Not Available

Product Details

Wheel Stud Quantity	4
Bolt Circle Diameter	100.000
Flange Shape	MODIFIED
Wheel Pilot Diameter	56.500
Hub Pilot Diameter	85.000
Flange Offset	39.000
Brake Pilot Diameter	59.500
Flange Diameter	132.500
Spline Quantity	33
Flange Bolt Hole Quantity	3
Anti Lock Brake Sensor Included	No
Heavy Duty Supplier	Yes
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2005-2010 Chevrolet Cobalt (Front) (Liter: 2.2 & Engine(cc): 2198 & Engine(ci): 134 & Cylinder: 4 & Block: L & Bore(in): 3.39 & Bore(mm): 86.0 & Stroke(in): 3.72 & Stroke(mm): 94.6 & ABS: Non-ABS / Qualifier: with 4 Stud Hub); 2005-2006 Pontiac Pursuit (Front) (ABS: Non-ABS / Qualifier: with 4 Stud Hub); 2007-2010 Pontiac G5 (Front) (ABS: Non-ABS / Qualifier: with 4 Stud Hub); 2003-2007 Saturn Ion (Front) (ABS: Non-ABS / Qualifier: with 4 Stud Hub)
