Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 271.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513225

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

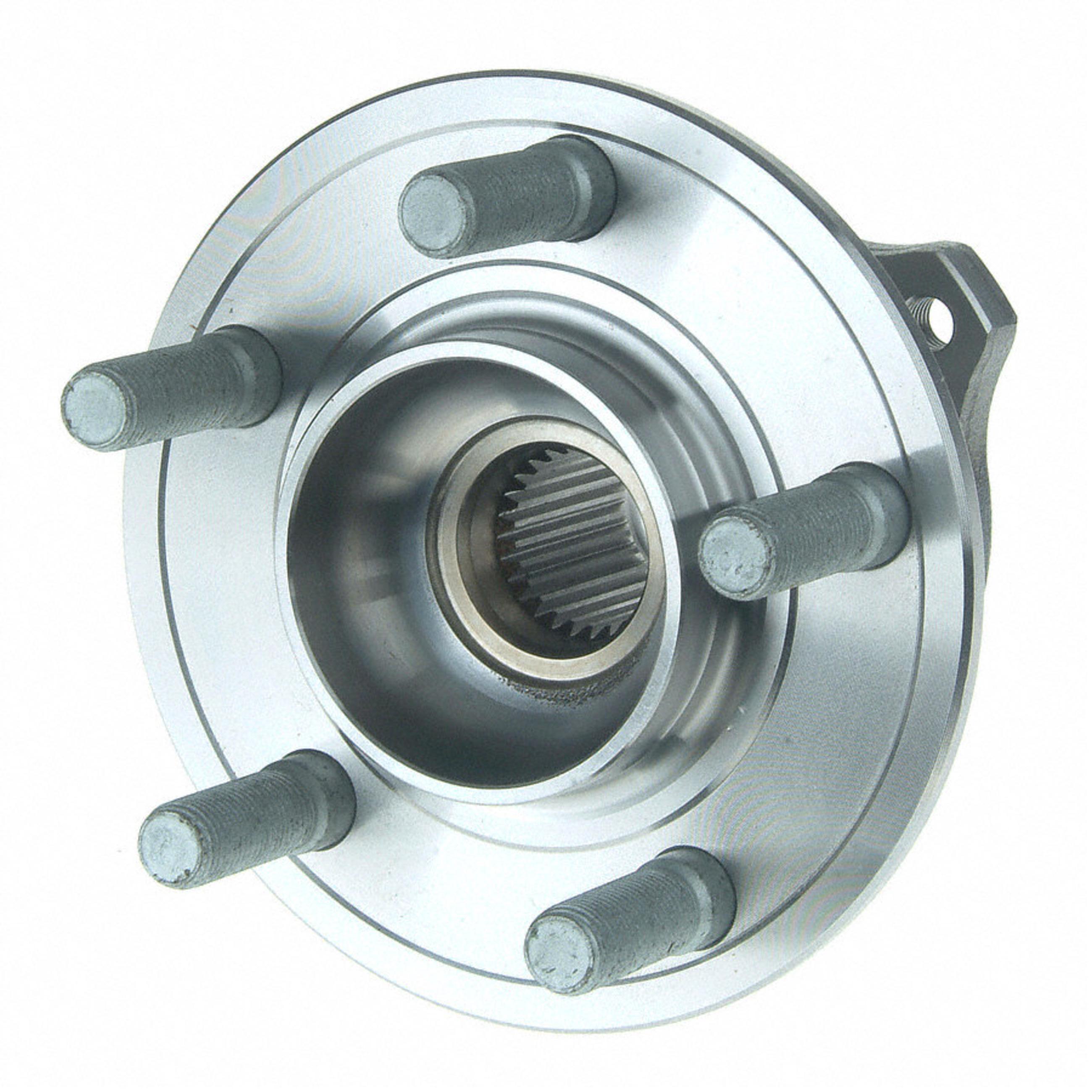

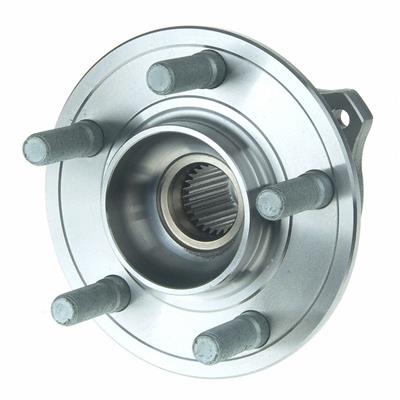

Front Wheel Bearing and Hub Assembly

Part # 513225 | Line Code: BRG

$271.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Brake Pilot Diameter	72.500
Flange Shape	RECTANGLE
Spline Quantity	27
Anti Lock Brake Sensor Included	No
Heavy Duty Supplier	Yes
Wheel Pilot Diameter	71.400
Flange Bolt Hole Quantity	4
Wheel Stud Quantity	5
Bolt Circle Diameter	4.527
Flange Diameter	150.000
Prop 65 Label (Yes/No)	No
Flange Offset	60.300
Hub Pilot Diameter	90.400
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2005-2022 Chrysler 300 Touring Touring L (Front) (Liter: 5.7, 3.5, 3.6 & Engine(cc): 3497, 3604 & Engine(ci): 345, 215, 220 & Cylinder: 8, 6 & Block: V & Bore(in): 3.92, 3.78 & Bore(mm): 99.57, 96.0 & Stroke(in): 3.58, 3.19, 3.27 & Stroke(mm): 90.93, 81.0, 83.0 & Drive: AWD); 2017-2022 Dodge Challenger GT SXT (Front) (Liter: 3.6 & Engine(cc): 3604 & Engine(ci): 220 & Cylinder: 6 & Block: V & Bore(in): 3.78 & Bore(mm): 96.0 & Stroke(in): 3.27 & Stroke(mm): 83.0 & Drive: AWD); 2007-2022 Dodge Charger SXT SXT Plus R/T GT Pursuit (Front) (Liter: 3.6, 5.7 & Drive: AWD / Qualifier: with 4 Bolt Flange); 2005-2008 Dodge Magnum (Front) (Drive: AWD)
