Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 208.99 USD

keyboard_arrow_left

Go back

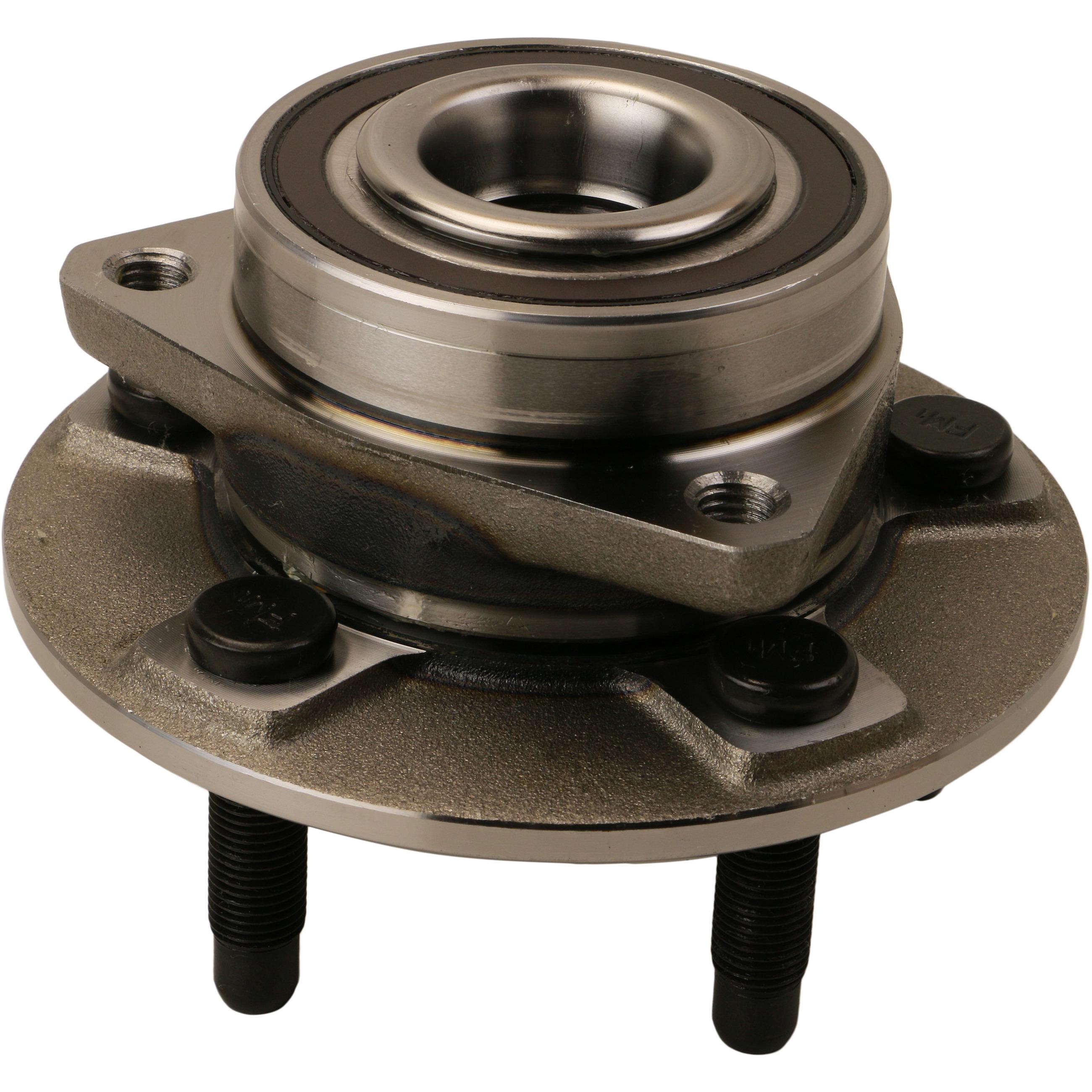

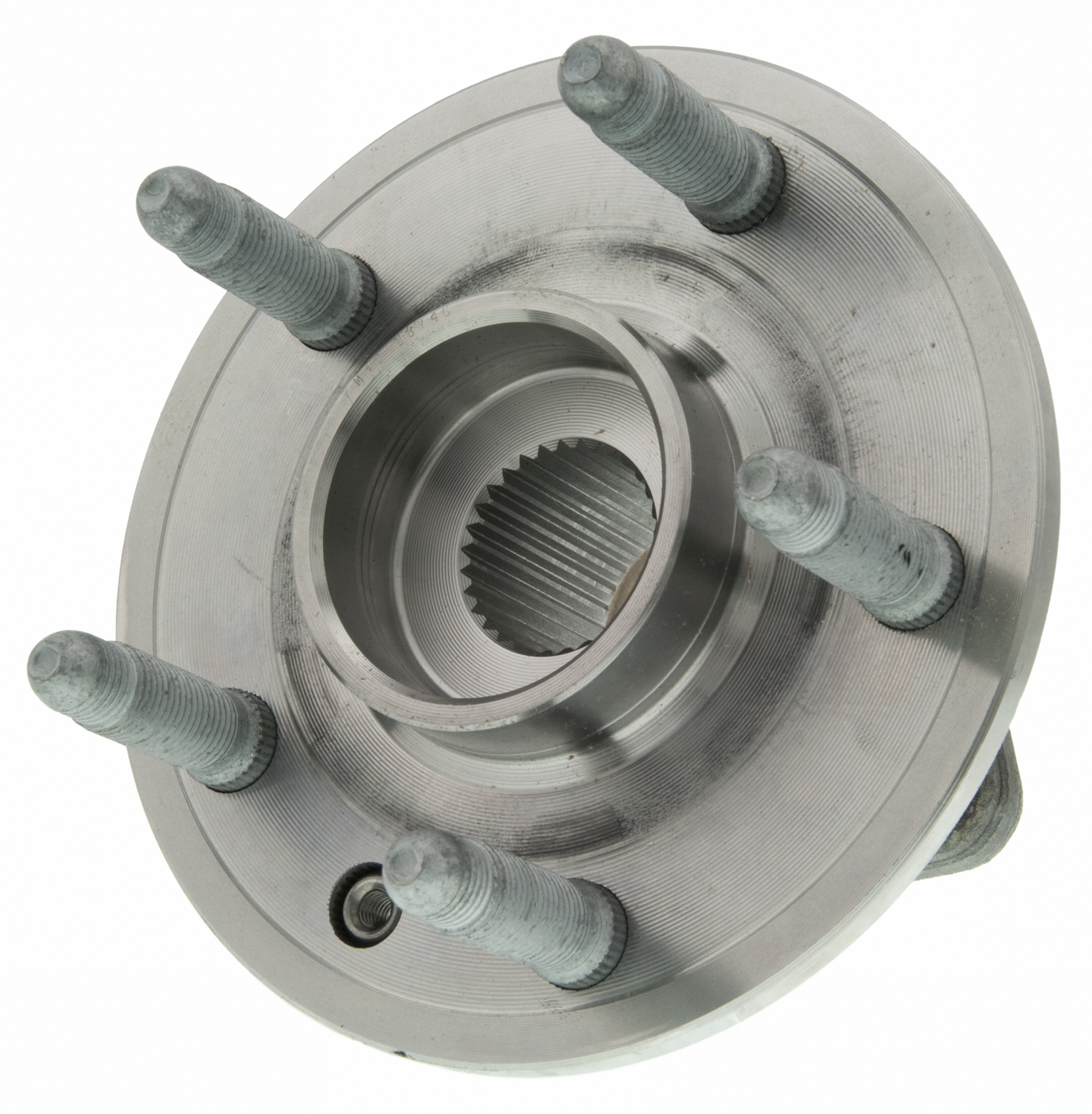

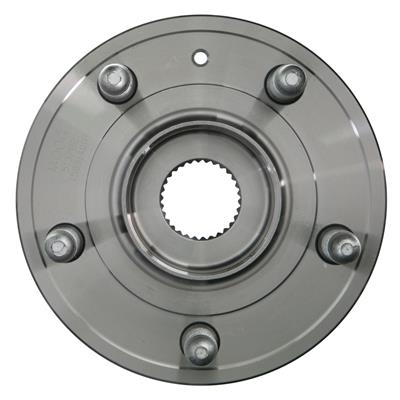

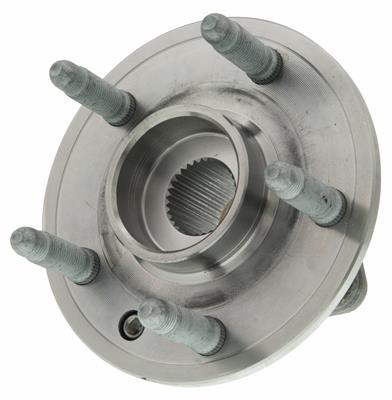

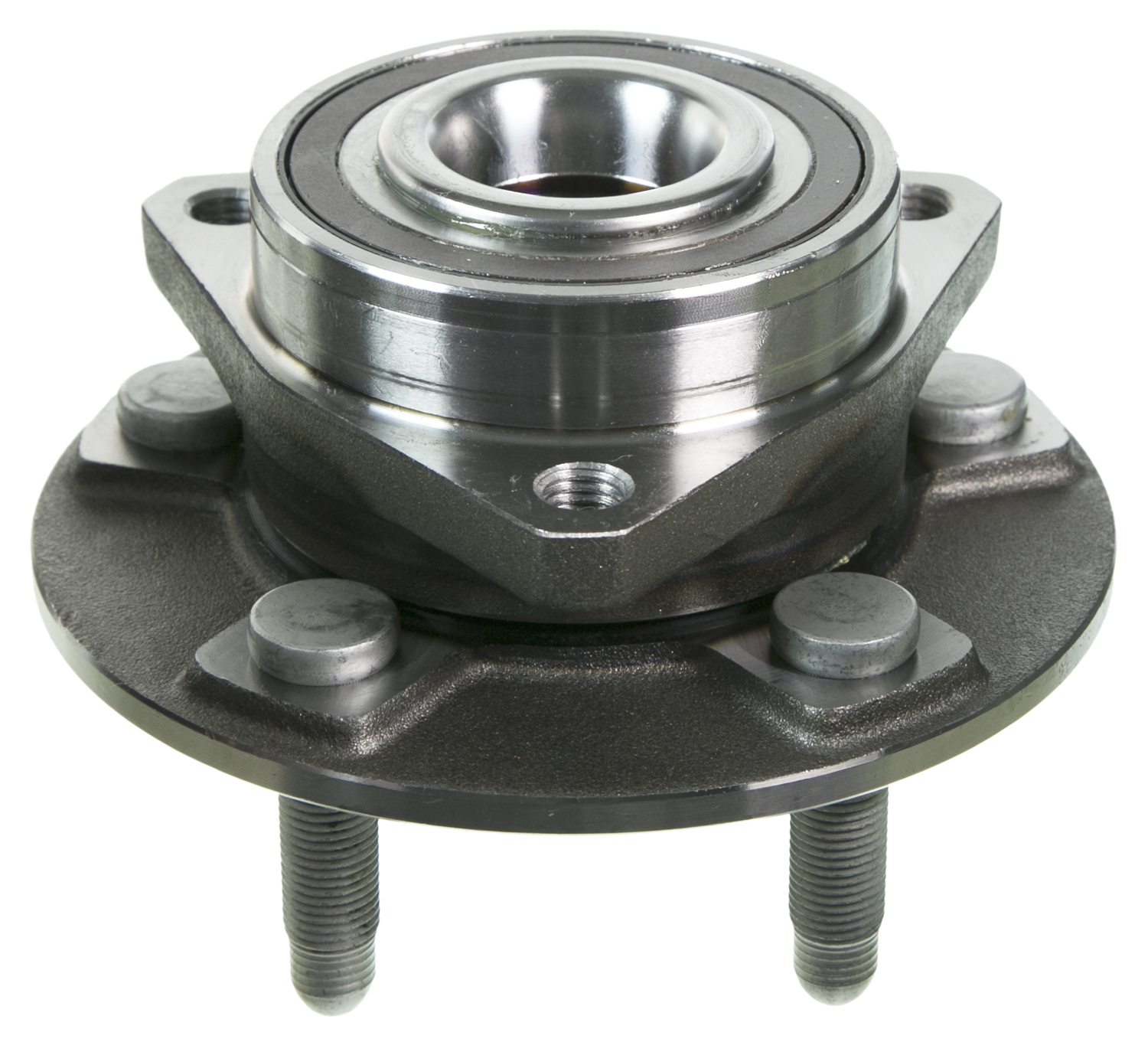

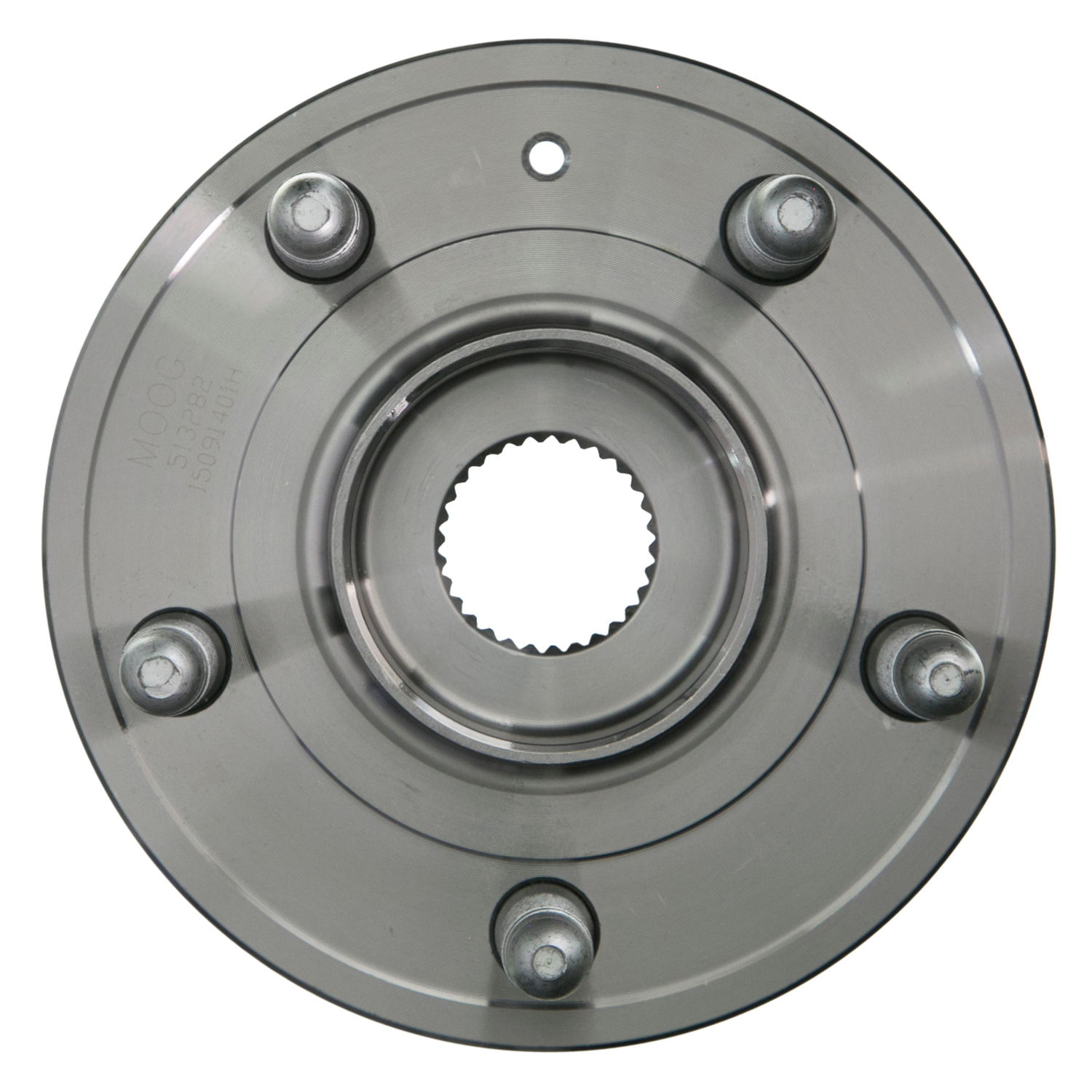

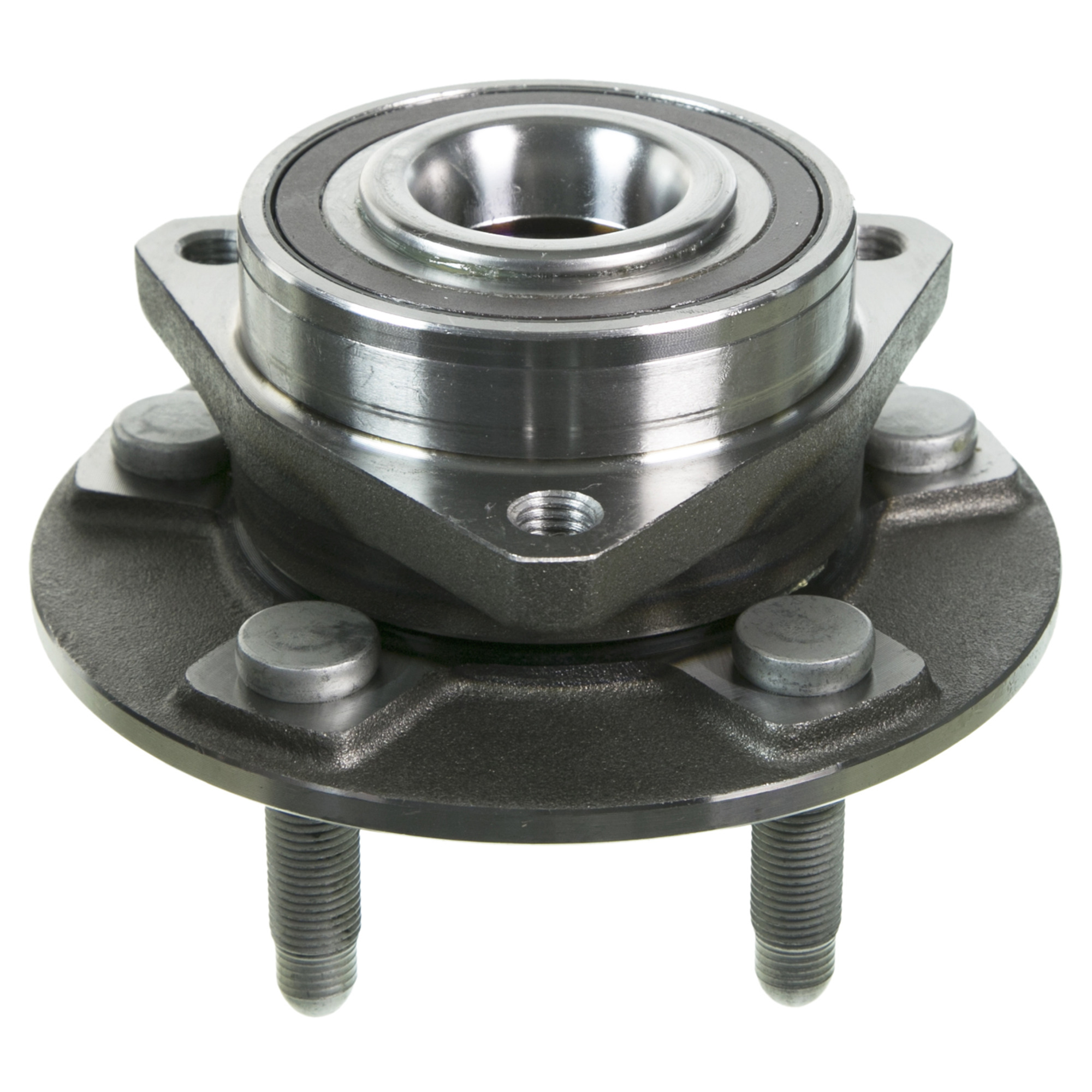

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 513282

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Rear Front Wheel Bearing and Hub Assembly

Part # 513282 | Line Code: BRG

$208.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Shipping Not Available

Product Details

Wheel Stud Quantity	5
Flange Shape	MODIFIED
Bolt Circle Diameter	4.729
Hub Pilot Diameter	91.200
Flange Offset	42.000
Wheel Pilot Diameter	66.900
Brake Pilot Diameter	67.400
Flange Diameter	157.100
Spline Quantity	30
Flange Bolt Hole Quantity	3
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2018-2019 Cadillac XTS (Rear, Front) (Qualifier: Except GM Brake Code J55); 2008-2019 Cadillac CTS Performance Luxury Base Vsport (Front, Rear) (Doors: 4 & Body: Sedan, Wagon & Liter: 3.6 & Engine(cc): 3564 & Engine(ci): 217 & Cylinder: 6 & Block: V & Bore(in): 3.70 & Bore(mm): 94.0 & Stroke(in): 3.37 & Stroke(mm): 85.6 & Drive: AWD, RWD / Qualifier: without Posi-Traction); 2010-2015 Chevrolet Camaro LT LS SS (Front, Rear) (Liter: 3.6 & Engine(cc): 3564 & Engine(ci): 217 & Cylinder: 6 & Block: V & Bore(in): 3.70 & Bore(mm): 94.0 & Stroke(in): 3.37 & Stroke(mm): 85.6 & Transmission Base Type: Transmission & Transmission Control Type: Manual, Automatic / Qualifier: without Performance Package); 2018-2019 Chevrolet Impala (Rear, Front)
