Wheel Bearings & Seals

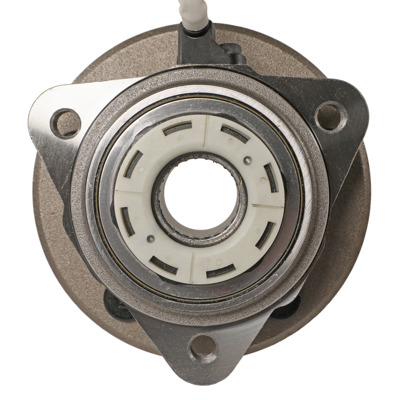

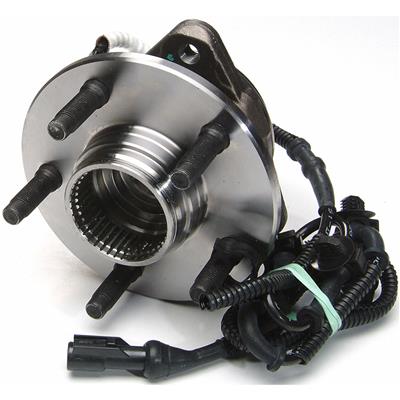

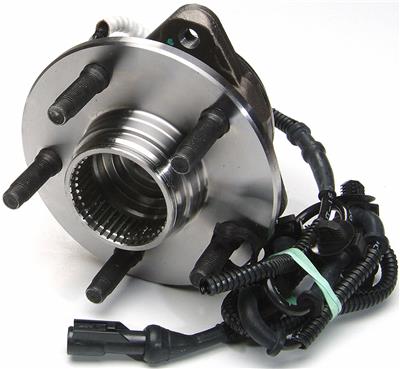

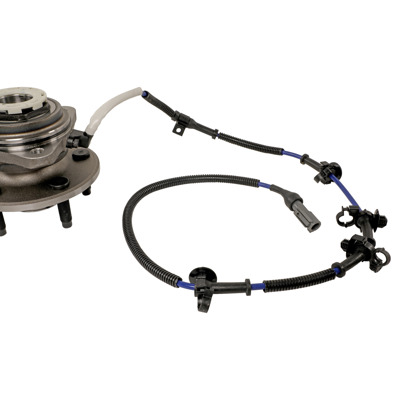

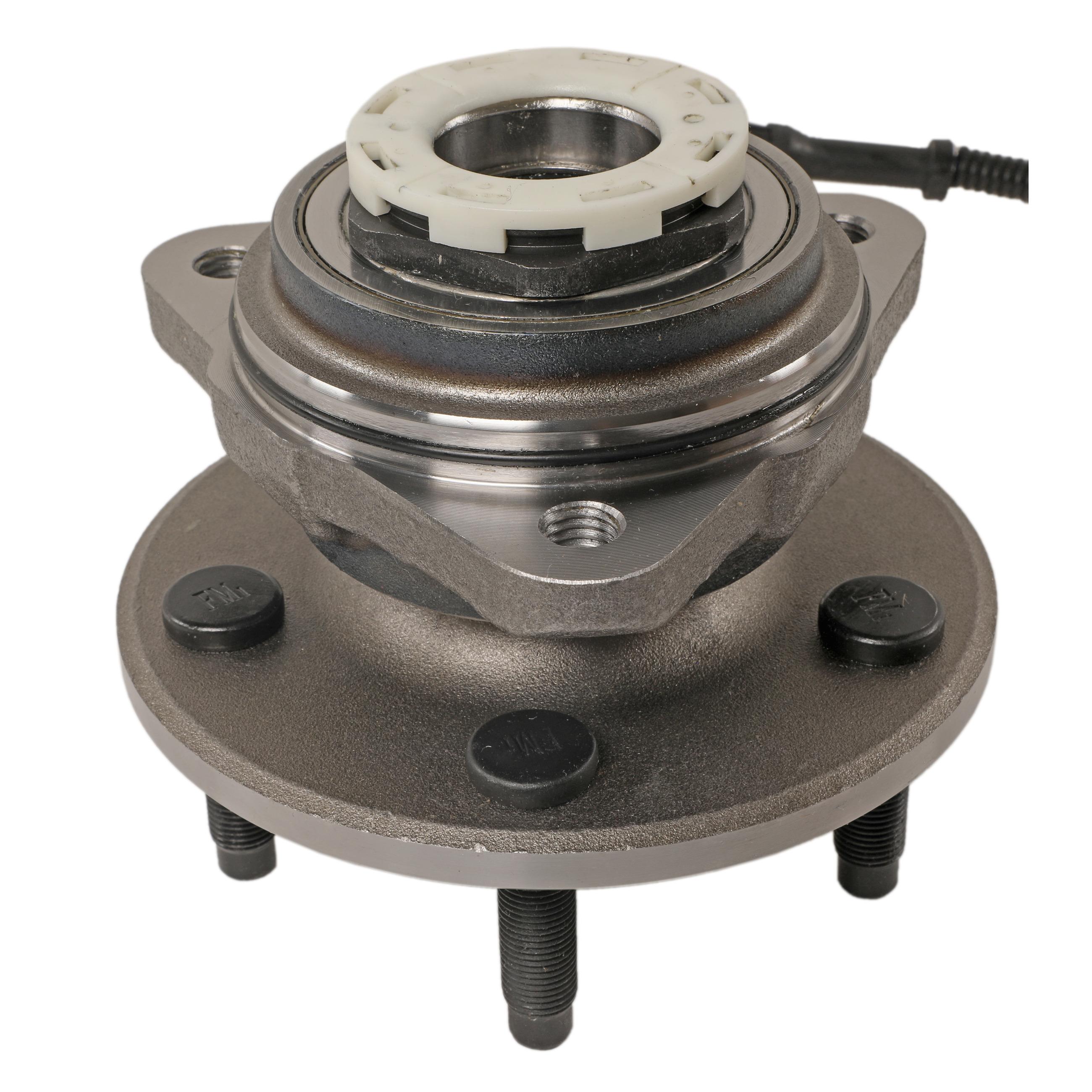

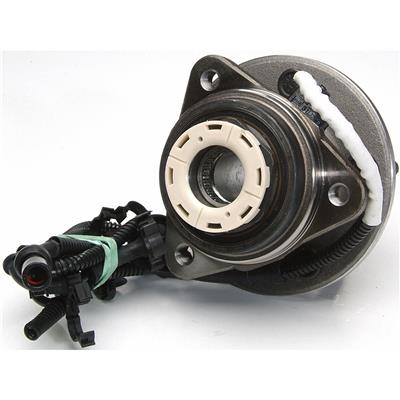

Front Wheel Bearing and Hub Assembly
Part # 515027 | Line Code: BRG
brandNameImage
brandNameImage

$394.99
error
Not Fitted
block
Shipping Not Available

Product Details
expand_less
Spline Quantity 42
Wheel Stud Quantity 5
Flange Shape Triangular
Wheel Pilot Diameter 2.780
Brake Pilot Diameter 2.780
Hub Pilot Diameter 3.940
Flange Offset 2.220
Flange Diameter 5.880
Bolt Circle Diameter 4.500
Flange Bolt Hole Quantity 3

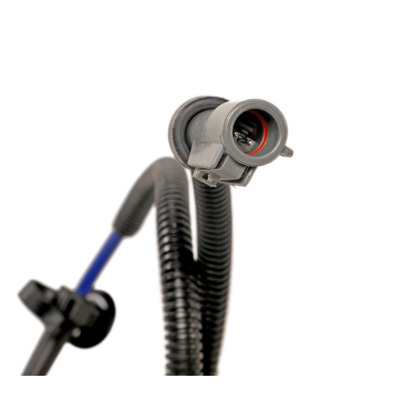

Anti Lock Brake Sensor Included Yes
Heavy Duty Supplier Yes
Part Terminology Wheel Bearing and Hub Assembly

Features & Benefits
expand_more
By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

Application Summary
expand_more

1998-2000 Ford Ranger (Front) (ABS: 4-Wheel ABS & Drive: 4WD / Qualifier: 1st Design, with Pulse Vacuum Hub Locks); 1998-2000 Mazda B4000 (Front) (ABS: 4-Wheel ABS & Drive: 4WD / Qualifier: 1st Design, with Pulse Vacuum Hub Locks)
