Name: Wheel Bearing and Hub Assembly
Brand: MOOG Hub Assemblies
Price: 237.99 USD

keyboard_arrow_left

Go back

Wheel Bearing and Hub Assembly MOOG Hub Assemblies 515096

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

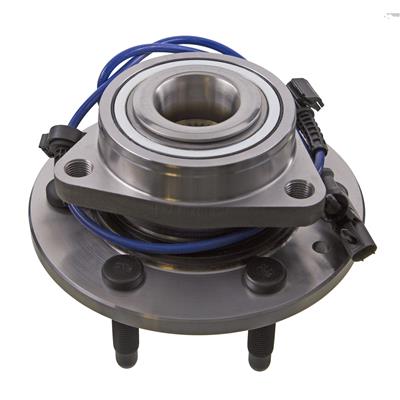

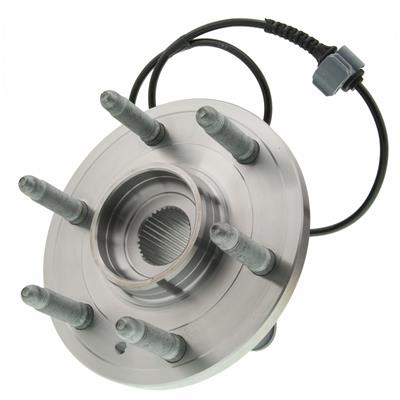

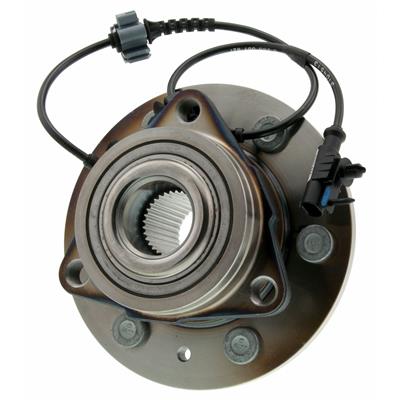

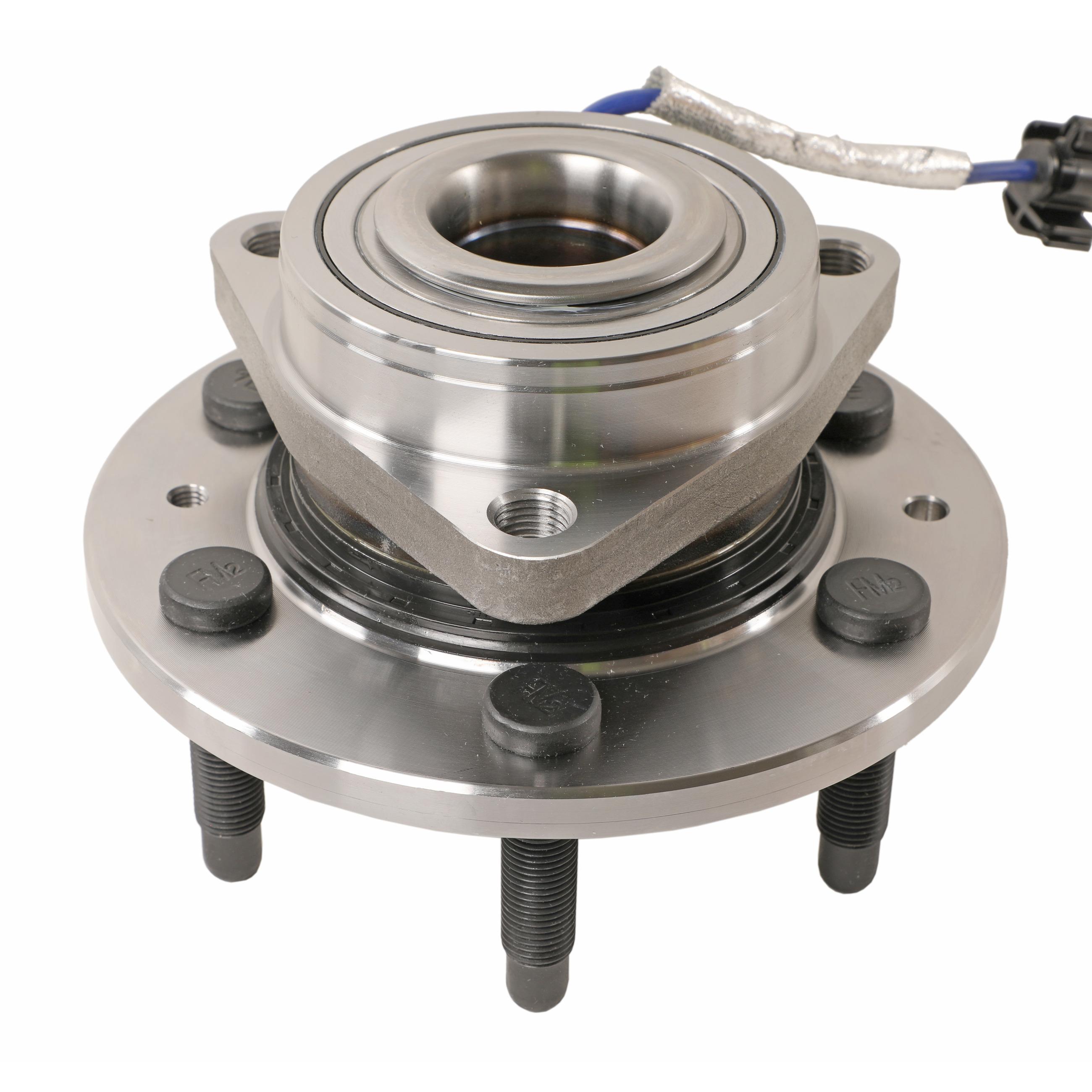

Front Wheel Bearing and Hub Assembly

Part # 515096 | Line Code: BRG

$237.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Flange Shape	Triangle
Wheel Stud Quantity	6
Flange Offset	1.976
Brake Pilot Diameter	3.087
Hub Pilot Diameter	3.087
Flange Diameter	5.500
Bolt Circle Diameter	5.500
Wheel Pilot Diameter	77.700
Spline Quantity	33
Flange Bolt Hole Quantity	3
Anti Lock Brake Sensor Included	Yes
Heavy Duty Supplier	Yes
Part Terminology	Wheel Bearing and Hub Assembly

Features & Benefits

Backed by superior materials and rigorous testing, MOOG hub assemblies deliver reliable performance you can count on. MOOG problem-solving innovations ensure fast, hassle-free installation.

Application Summary

2007-2014 Cadillac Escalade ESV (Front) (Drive: AWD); 2007-2013 Cadillac Escalade EXT (Front); 2007-2014 Cadillac Escalade (Front) (Drive: AWD); 2007-2013 Chevrolet Avalanche (Front) (Drive: 4WD); 2007-2013 Chevrolet Silverado 1500 WT LTZ LT (Front) (Drive: 4WD); 2007-2014 Chevrolet Suburban 1500 (Front) (Drive: 4WD); 2007-2014 Chevrolet Tahoe (Front) (Drive: 4WD, RWD / Qualifier: with Police Package); 2007-2013 GMC Sierra 1500 (Front) (Drive: AWD, 4WD); 2007-2014 GMC Yukon (Front) (Drive: AWD, 4WD); 2007-2014 GMC Yukon XL 1500 (Front) (Drive: 4WD, AWD)
