| Design | Double Row Angular Contact |
| Type | E-3 |

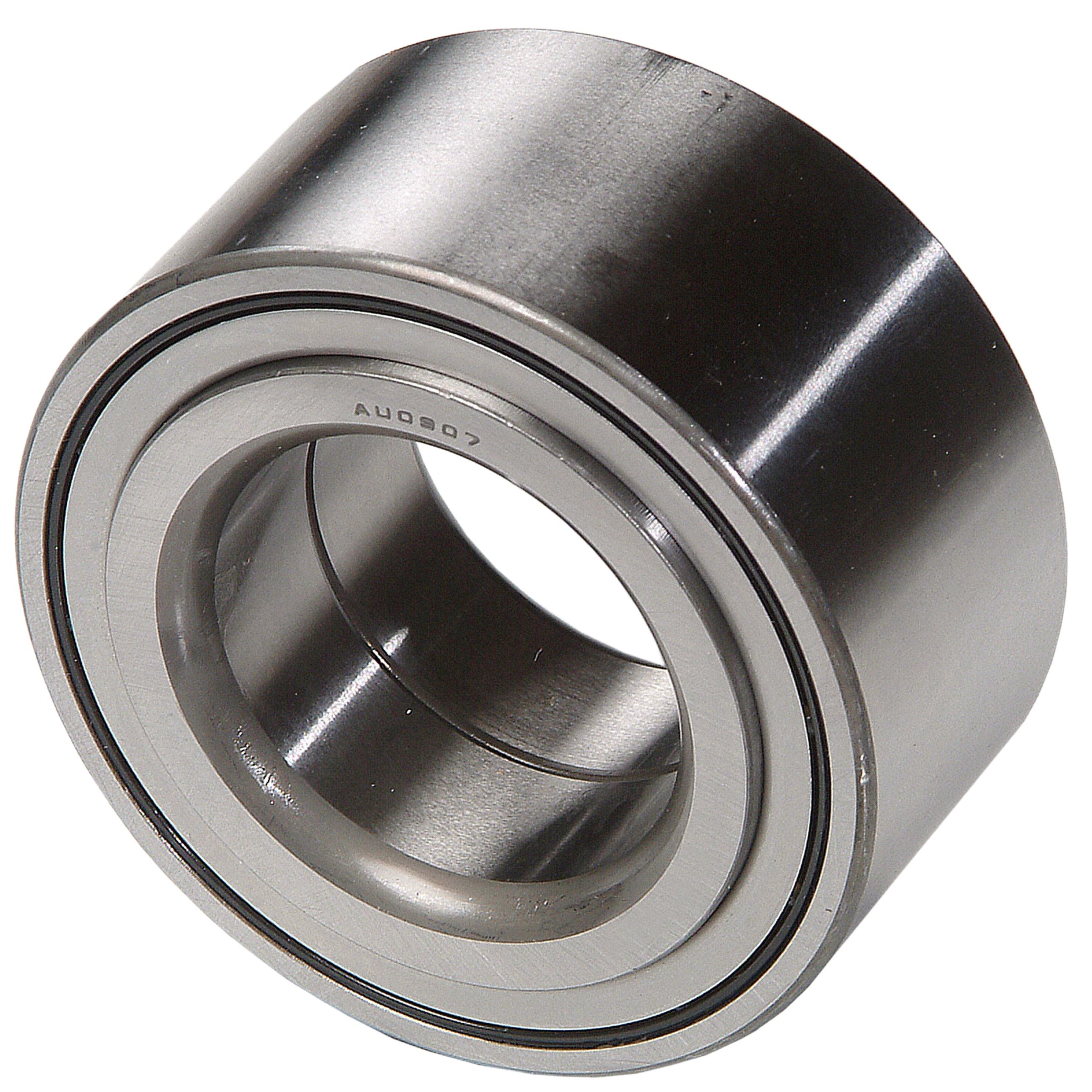

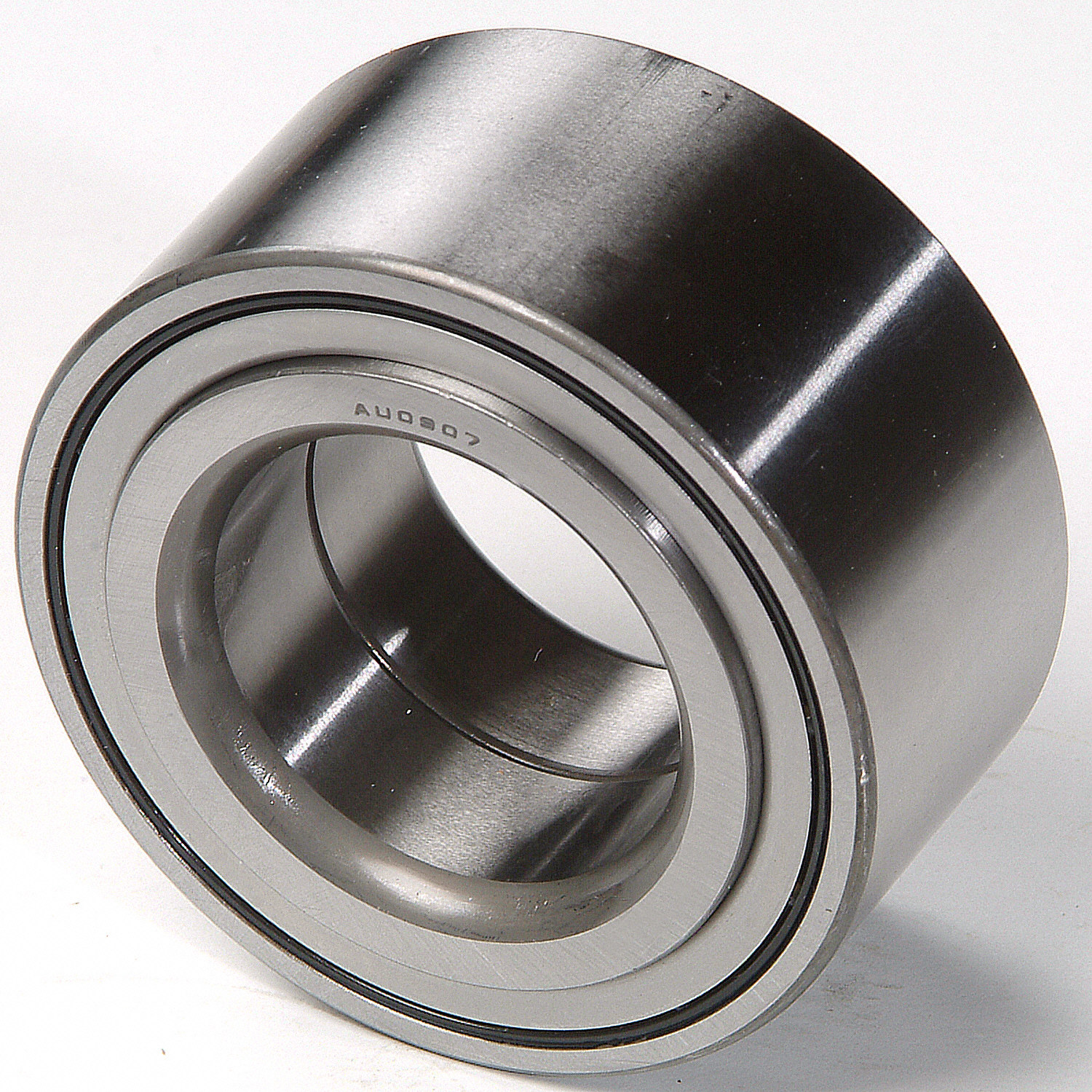

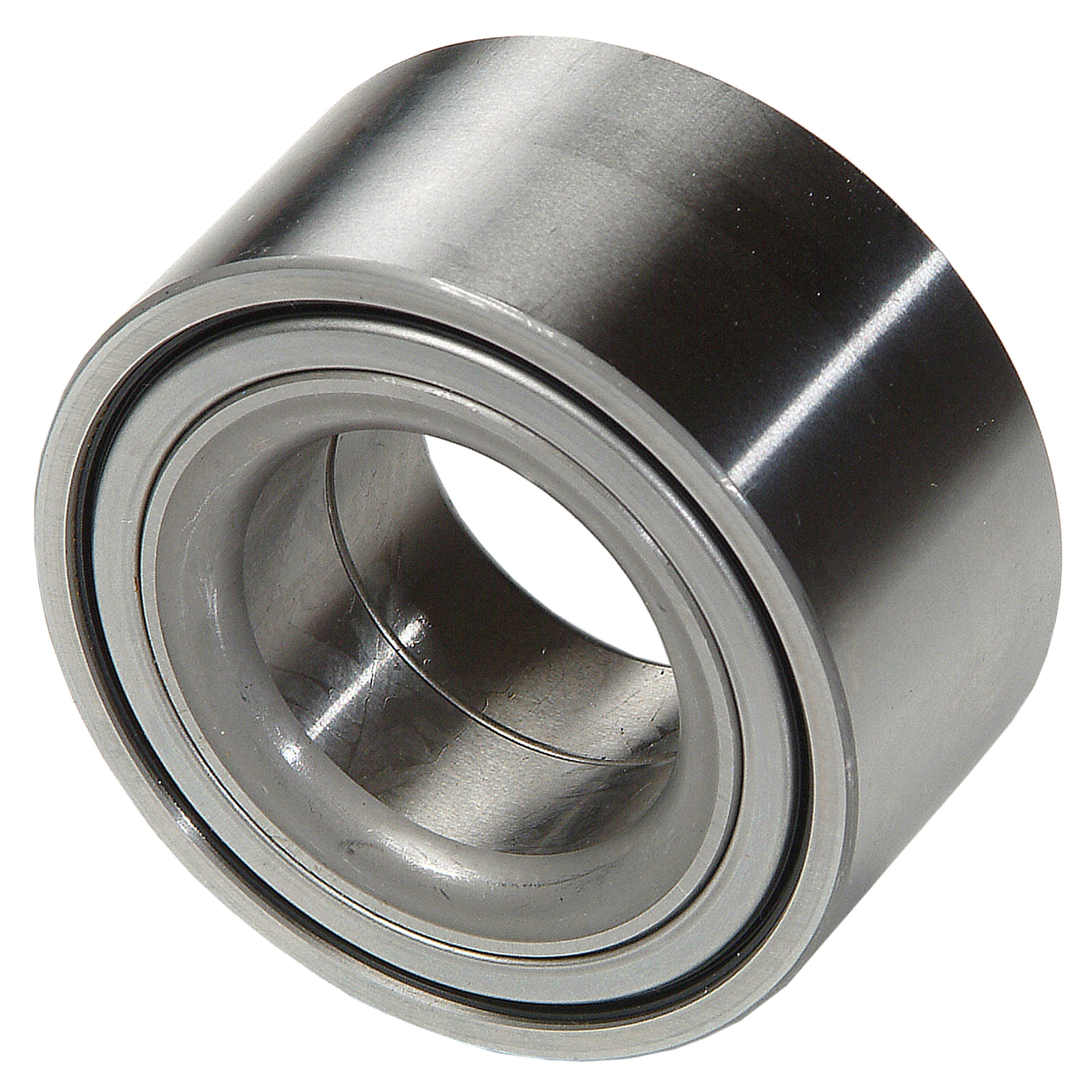

| Part Description | Wheel Bearing |
| Series | FWDB |
| Footnote | GEN1 |
| Inner Race Radius (Inch) | 0.150 |
| Inner Race Radius (MM) | 3.800 |
| Inner Race Bore (MM) | 43.000 |
| Bore (Inch) | 1.693 |
| Bore (MM) | 43.000 |
| Inner Race Bore (Inch) | 1.693 |
| Outer Race Width (Inch) | 1.496 |
| Outer Race Width (MM) | 38.000 |
| Inner Race Width (MM) | 41.000 |
| Outer Race Outside Diameter (MM) | 79.000 |
| Outer Race Radius (Inch) | 0.002 |
| Width (inch) | 1.614 |
| Outer Race Outside Diameter (Inch) | 3.110 |
| WIDTH (MM) | 41.000 |
| Inner Race Width (Inch) | 1.614 |
| Outer Race Radius (MM) | 0.059 |
| Outside Diameter (MM) | 79.000 |
| Outside Diameter (Inch) | 3.110 |
| Heavy Duty Supplier | Yes |
| Part Terminology | Wheel Bearing Collar |
