| Overall Height | 133.2 |
| Overall Height (in) | 5.244 In |
| ABS Sensor Ring Included | Yes |
| Outer Diameter (in) | 11.72 In |
| Discard Thickness | 24.5 |
| Overall Height (MM) | 133.2 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 297.7 mm |
| Center Hole Diameter (mm) | 59.055 mm |
| Rotor Outside Diameter | 11.72 |
| Center Hole Diameter (In) | 2.325 In |
| Minimum Thickness (IN) | 0.965 In |
| Minimum Thickness (mm) | 24.5 mm |
| New Thickness (In) | 1.024 In |
| Bolt Holes | 5 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 5.5 In |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 26.0 |
| Bolt Circle Diameter (mm) | 139.7 mm |
| New Thickness (mm) | 26 mm |

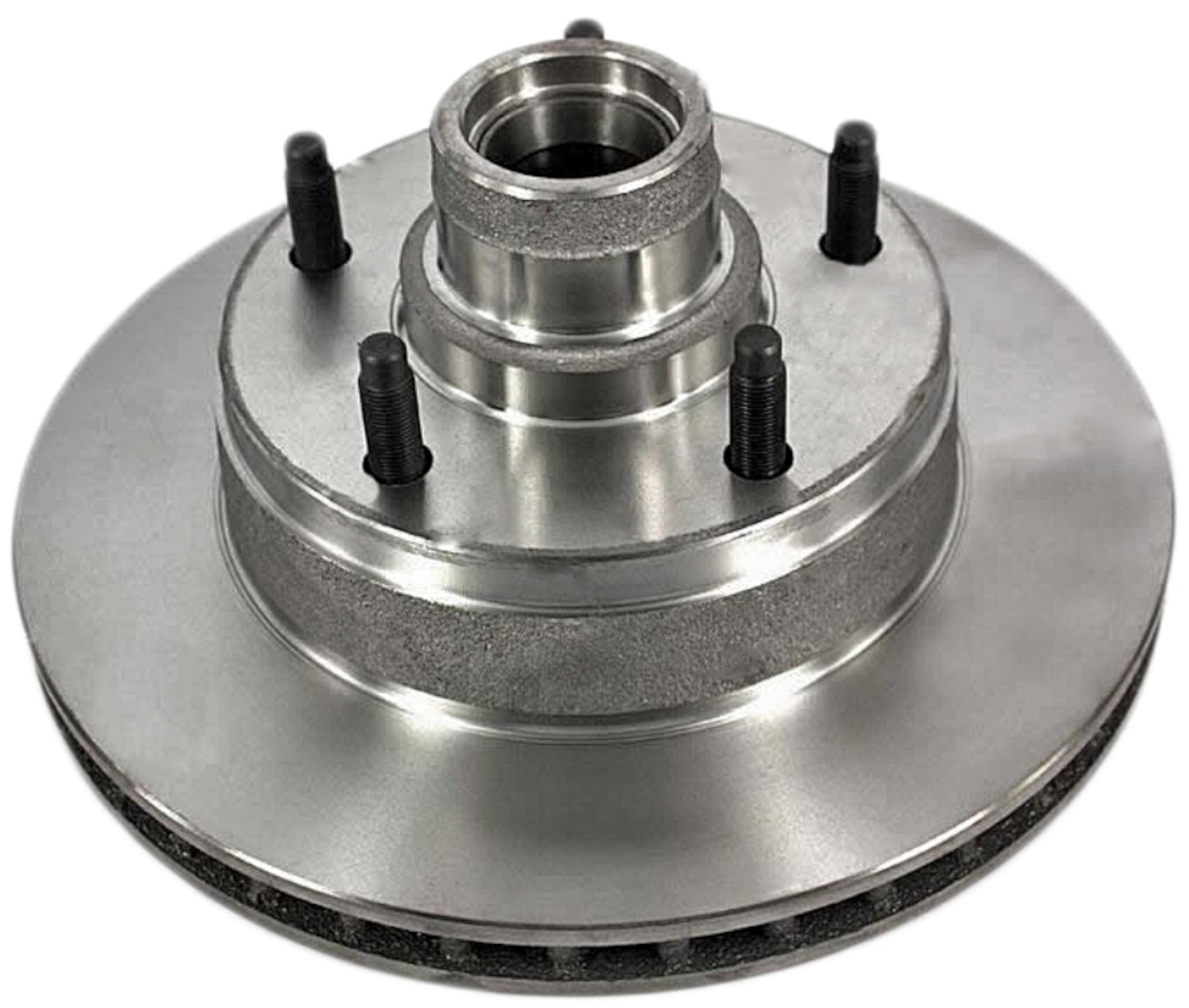

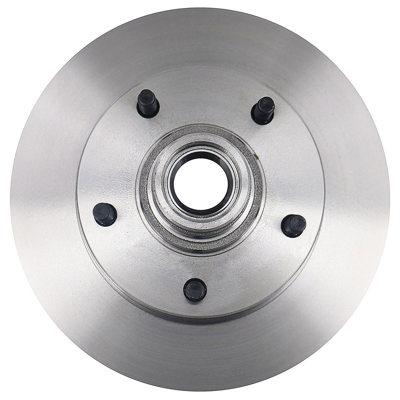

| Part Terminology | Disc Brake Rotor and Hub Assembly |
