| Overall Height | 8.85 |
| Overall Height (in) | 8.85 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 15.689 In |
| Overall Height (MM) | 224.8 mm |
| Heavy Duty Supplier | Yes |
| Maximum Drum Diameter (In) | 13.091 In |
| Outer diameter (mm) | 398.5 mm |
| Center Hole Diameter (mm) | 123.1 mm |
| Nominal Drum Diameter | 330.2 |
| Center Hole Diameter (In) | 4.846 In |
| Depth | 4.323 |
| Maximum Drum Diameter (mm) | 332.5 mm |
| Drum Diameter (mm) | 330.2 mm |
| Depth Of Braking Surface (In) | 4.39 In |
| Bolt Hole Quantity | 8 |
| Depth Of Braking Surface (mm) | 111.5 mm |
| Bolt Holes | 8 |
| Maximum Brake Diameter (Discard) | 332.5 |
| Bolt Circle Diameter (in) | 6.5 In |
| Outside Diameter | 398.5 |
| Drum Diameter (In) | 13 In |
| Bolt Circle Diameter (mm) | 165.1 mm |

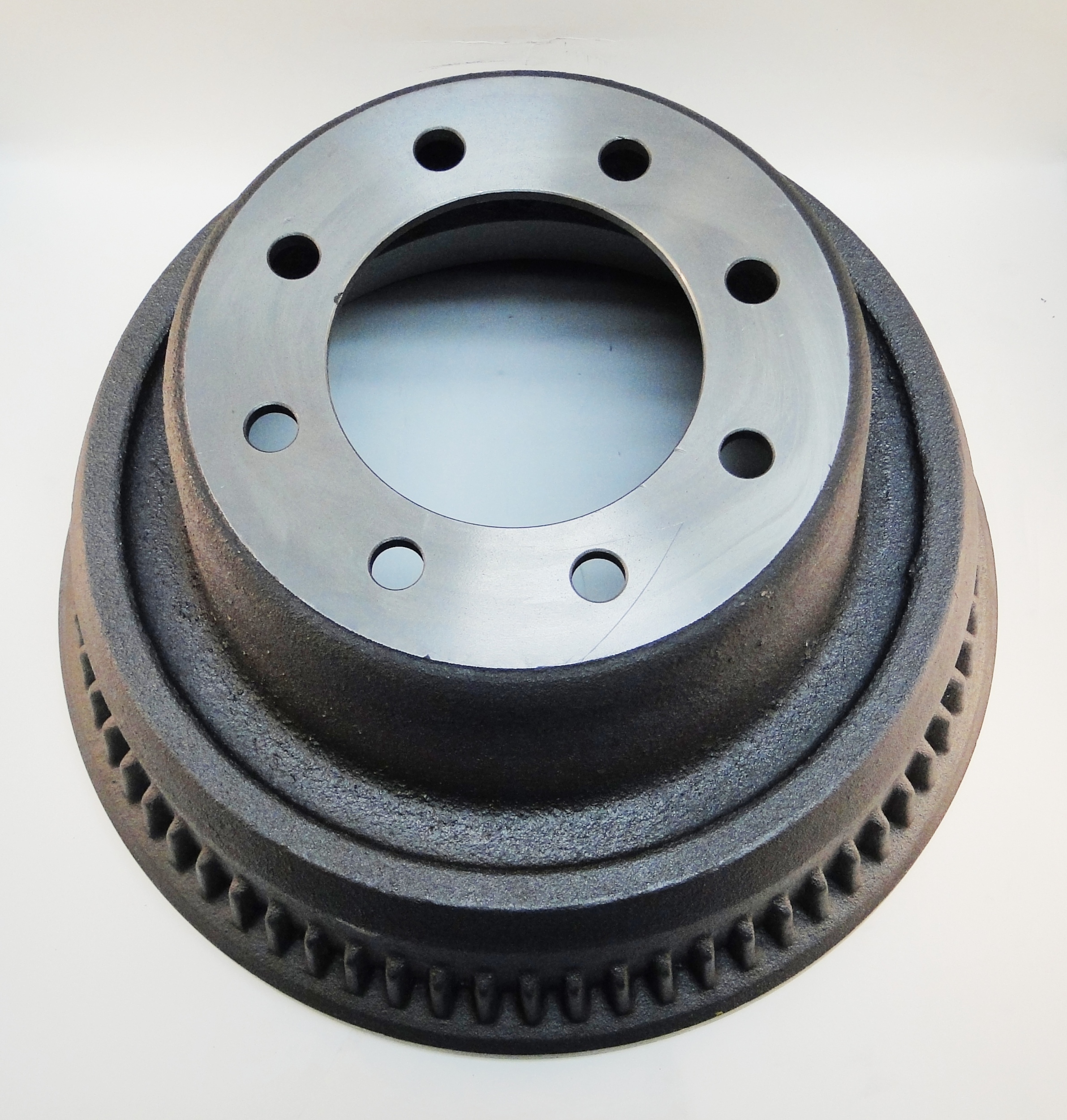

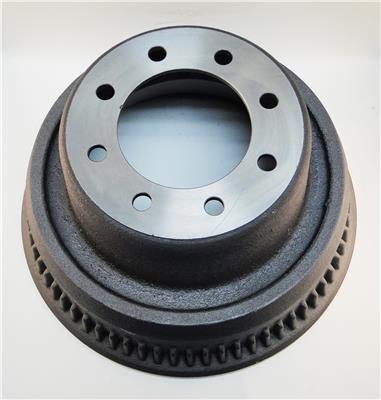

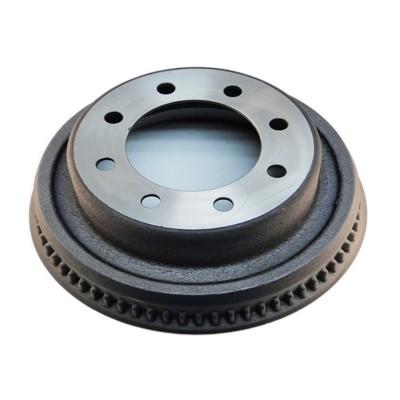

| Part Terminology | Brake Drum |
