| Overall Height | 3.19 |
| Overall Height (in) | 3.193 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 11.87 In |
| Overall Height (MM) | 81.1 mm |
| Heavy Duty Supplier | Yes |
| Maximum Drum Diameter (In) | 9.59 In |
| Outer diameter (mm) | 301.5 mm |
| Center Hole Diameter (mm) | 70.69 mm |
| Nominal Drum Diameter | 9.49 |
| Center Hole Diameter (In) | 2.783 In |
| Depth | 2.44 |
| Maximum Drum Diameter (mm) | 243.59 mm |
| Drum Diameter (mm) | 241.17 mm |
| Depth Of Braking Surface (In) | 2.441 In |
| Bolt Hole Quantity | 5 |
| Depth Of Braking Surface (mm) | 62 mm |
| Bolt Holes | 5 |
| Maximum Brake Diameter (Discard) | 243.59 |
| Bolt Circle Diameter (in) | 4.75 In |
| Outside Diameter | 11.87 |
| Drum Diameter (In) | 9.495 In |
| Bolt Circle Diameter (mm) | 120.65 mm |

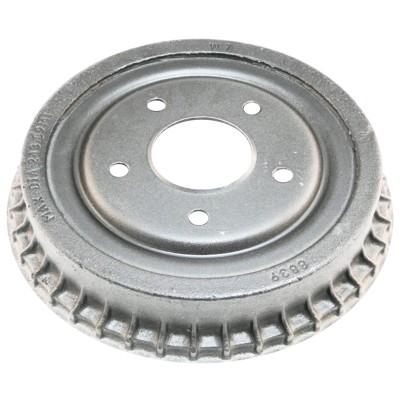

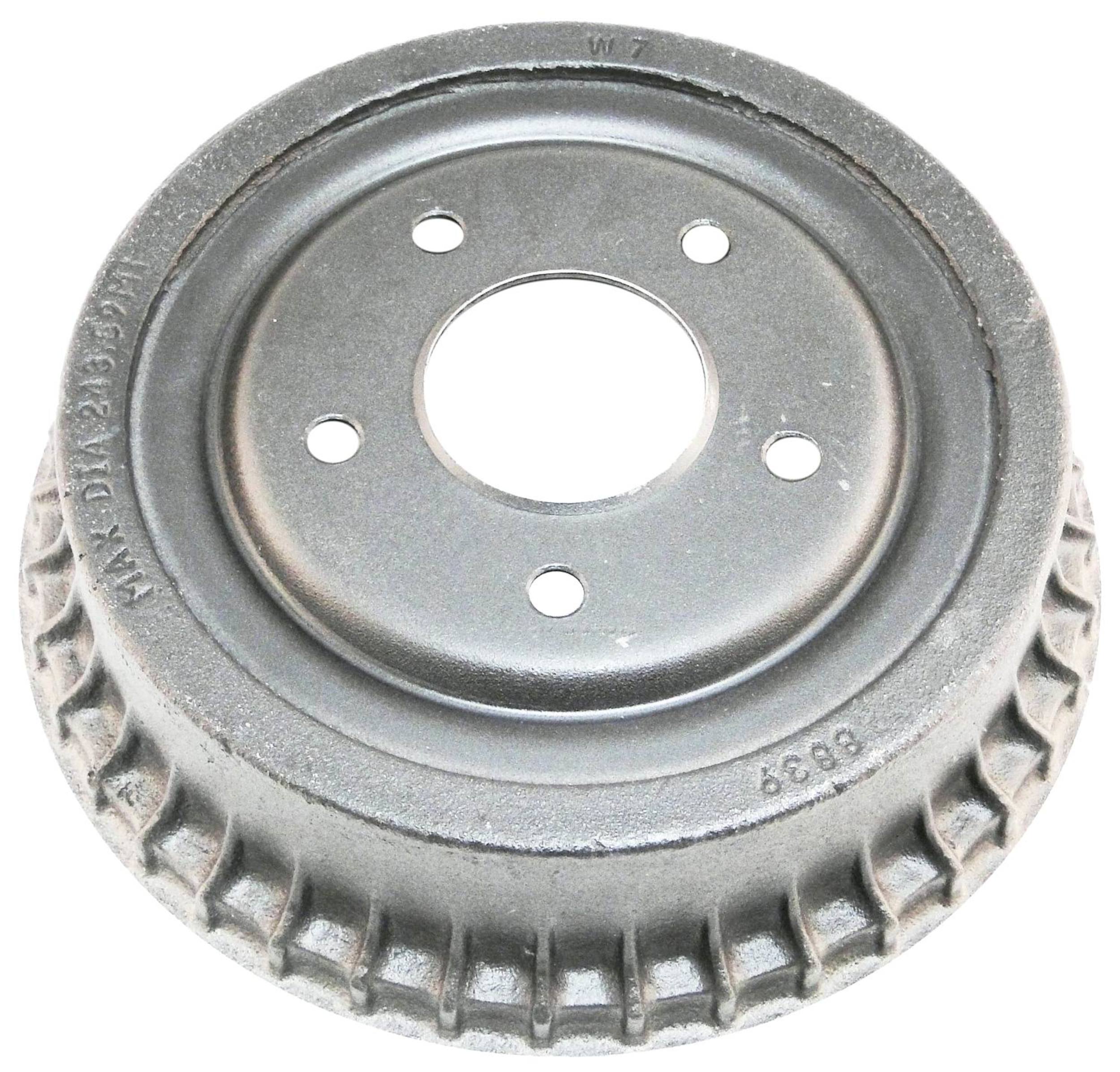

| Part Terminology | Brake Drum |
