| Overall Height | 55.8 |
| Overall Height (in) | 2.197 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 10.614 In |
| Overall Height (MM) | 55.8 mm |
| Heavy Duty Supplier | Yes |
| Maximum Drum Diameter (In) | 9.059 In |
| Outer diameter (mm) | 269.6 mm |
| Center Hole Diameter (mm) | 55.3 mm |
| Nominal Drum Diameter | 9.004 |
| Center Hole Diameter (In) | 2.177 In |
| Depth | 1.5 |
| Maximum Drum Diameter (mm) | 230.1 mm |
| Depth Of Braking Surface (In) | 1.5 In |
| Drum Diameter (mm) | 228.7 mm |
| Bolt Hole Quantity | 4 |
| Depth Of Braking Surface (mm) | 38.1 mm |
| Bolt Holes | 4 |
| Maximum Brake Diameter (Discard) | 9.059 |
| Bolt Circle Diameter (in) | 3.937 In |
| Outside Diameter | 10.614 |
| Drum Diameter (In) | 9.004 In |
| Bolt Circle Diameter (mm) | 100 mm |

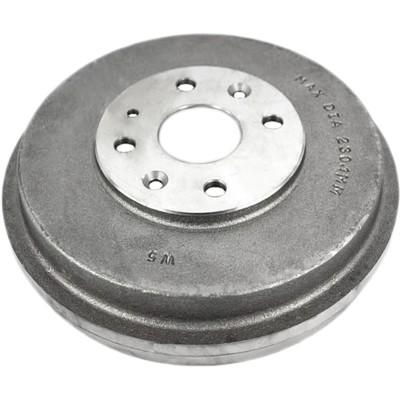

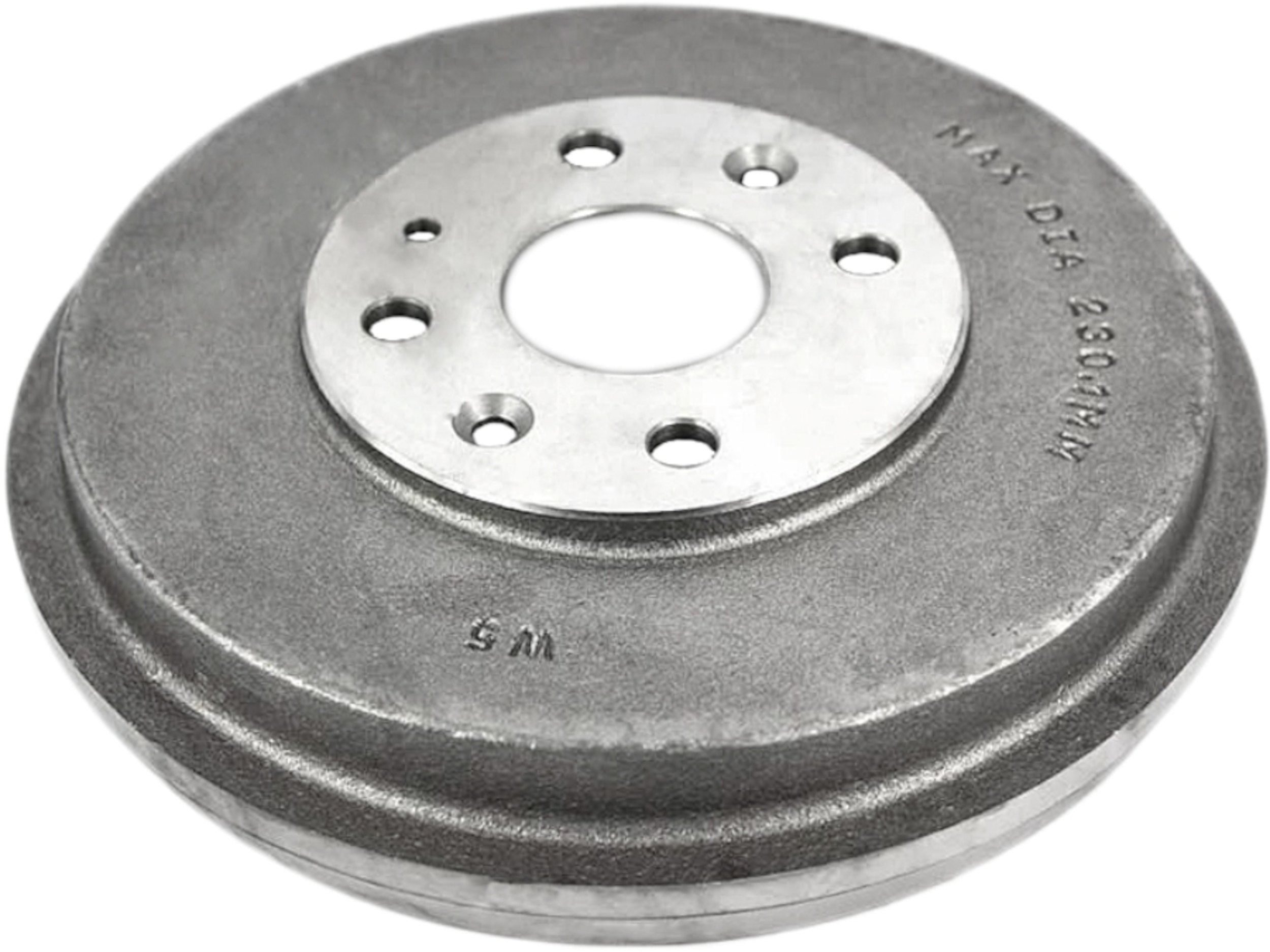

| Part Terminology | Brake Drum |
