| Overall Height | 159.4 |
| Overall Height (in) | 6.276 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 14.173 In |
| Overall Height (MM) | 159.4 mm |
| Heavy Duty Supplier | Yes |
| Maximum Drum Diameter (In) | 12.205 In |
| Outer diameter (mm) | 360 mm |
| Center Hole Diameter (mm) | 123 mm |
| Nominal Drum Diameter | 307.9 |
| Center Hole Diameter (In) | 4.843 In |
| Depth | 4.213 |
| Maximum Drum Diameter (mm) | 310 mm |
| Depth Of Braking Surface (In) | 4.213 In |
| Drum Diameter (mm) | 307.9 mm |
| Bolt Hole Quantity | 8 |
| Depth Of Braking Surface (mm) | 107 mm |
| Bolt Holes | 8 |
| Maximum Brake Diameter (Discard) | 310.0 |
| Bolt Circle Diameter (in) | 6.5 In |
| Outside Diameter | 14.173 |
| Drum Diameter (In) | 12.122 In |
| Bolt Circle Diameter (mm) | 165.1 mm |

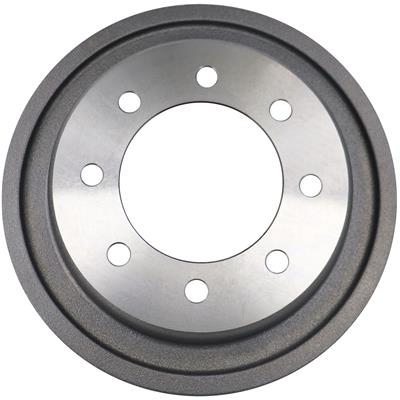

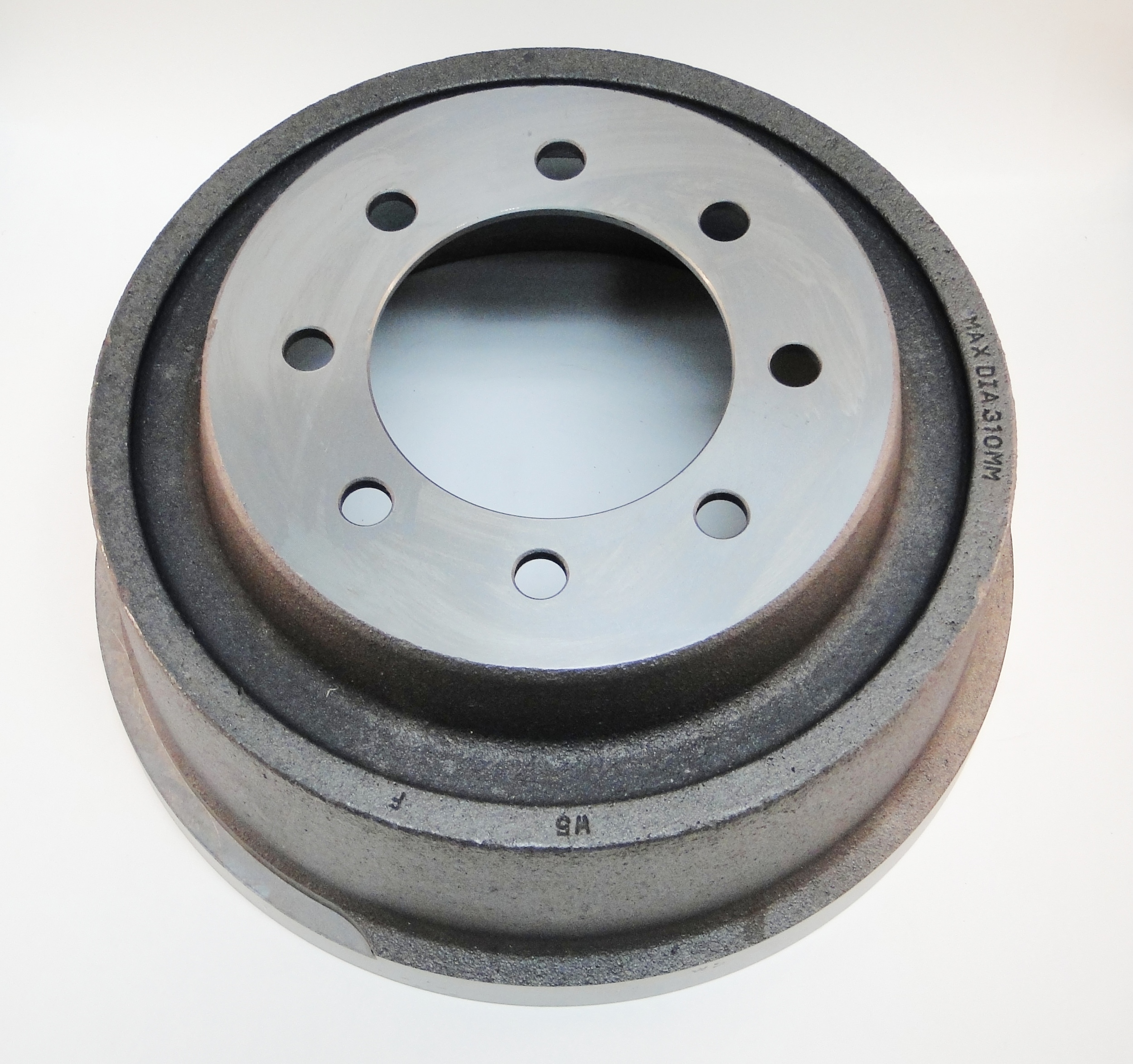

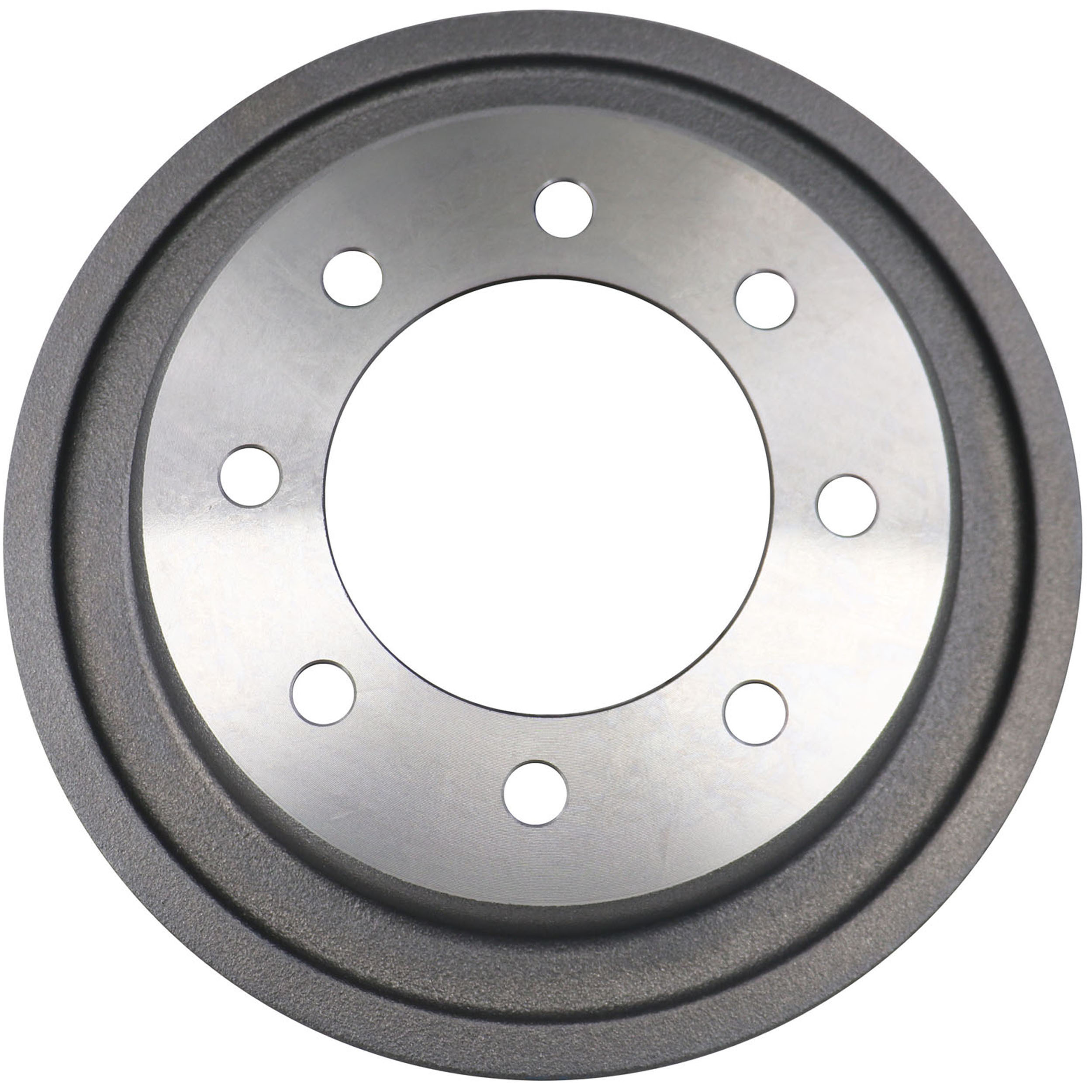

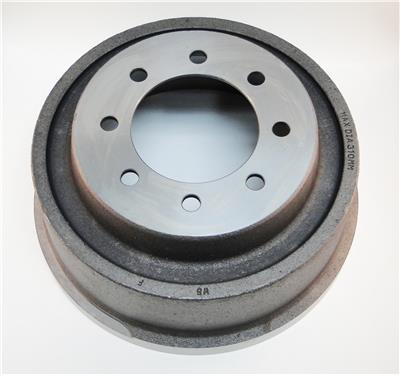

| Part Terminology | Brake Drum |
