Product Details
expand_less
| Snap Ring Included |
Y |
| Bearing Cap Diameter (1) |
1.062 |
| Hardware Included |
N |
| Snap Ring (1) |
3.219 |
| SR(1)Brng Cap to Brng Cap(OSR) |
3.219 |
| Grease Type |
N.L.G.I. Grade 2 |
| Heavy Duty Supplier |
Yes |
| Bearing Cap Diameter A (mm) |
26.975 |
| Grease Fitting Location |
One lube fitting in bearing |
| Length B (mm) |
81.8 |
| Length B (In) |
3.219 |
| Snap Ring Type |
External |
| Seal Material |
Rubber |
| SR(2)Brng Cap to Brng Cap(OSR) |
3.219 |
| Seal Color/Finish |
Blue |
| Pre Greased |
N |
| Bearing Cap Diameter (2) |
1.062 |
| Snap Ring (2) |
3.219 |
| Bearing Cap Diameter B (mm) |
26.975 |
| Coating Type |
None |
| OEM Series |
1310/SPL22 |
| Bearing Cap Type |
Round |
| Length A (In) |
3.219 |
| Grease Zerk Included |
Y |
| Bearing Cap Type B |
OSR |
| Length A (mm) |
81.8 |
| Mounting Hardware Included |
No |
| Material |
Steel |
| Model Number |
SPICER 1310/SPL22 |
| Bearing Cap Type A |
OSR |
| OEM Mfg |
Spicer |
| Type |
OSR Style |
| Greaseable |
Y |
| Prop 65 |
YES |
| California Proposition 65 |
WARNING: Cancer — www.p65warnings.ca.gov |
| Bearing Cap Finish |
Ground |
| Part Terminology |

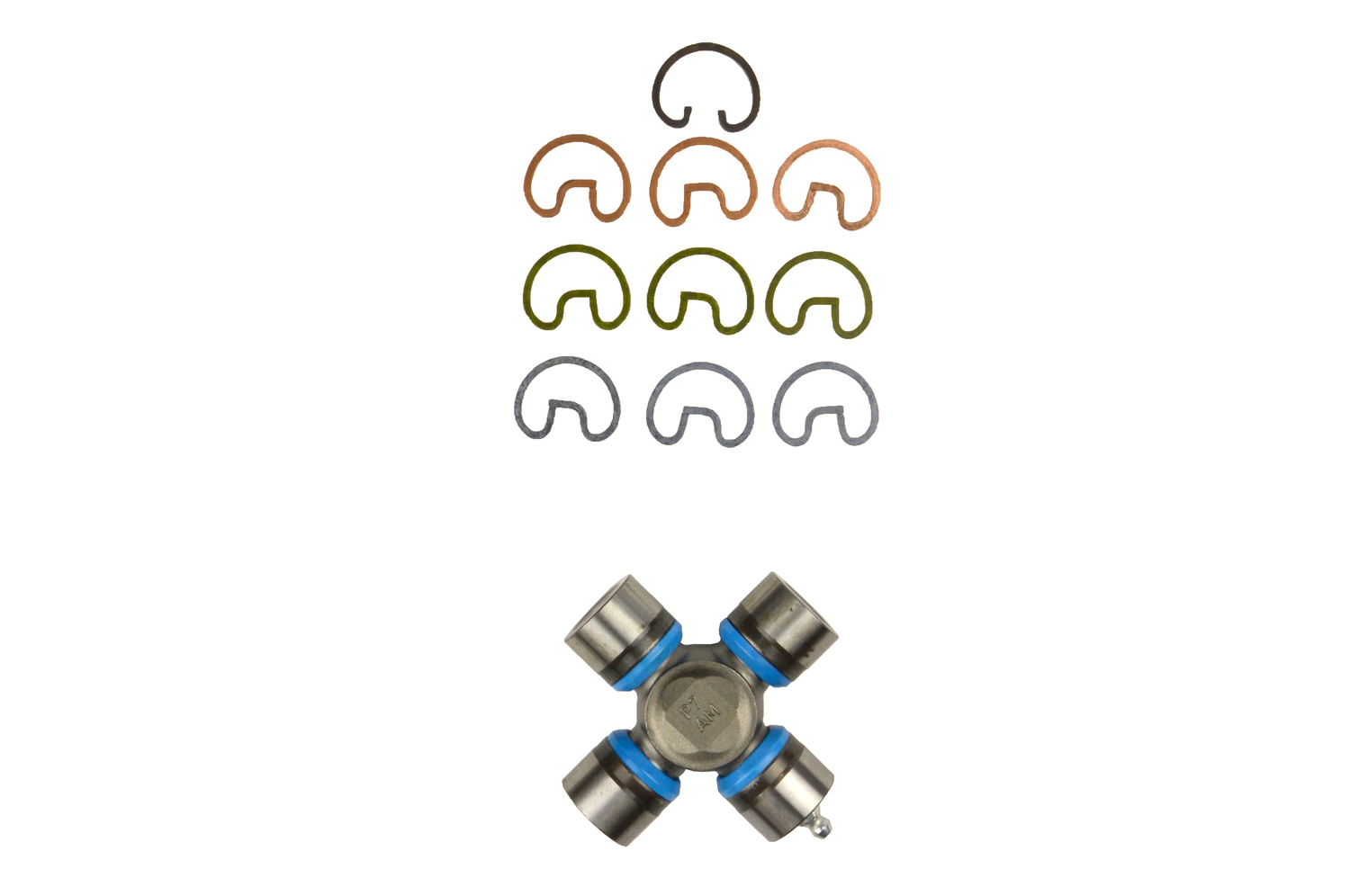

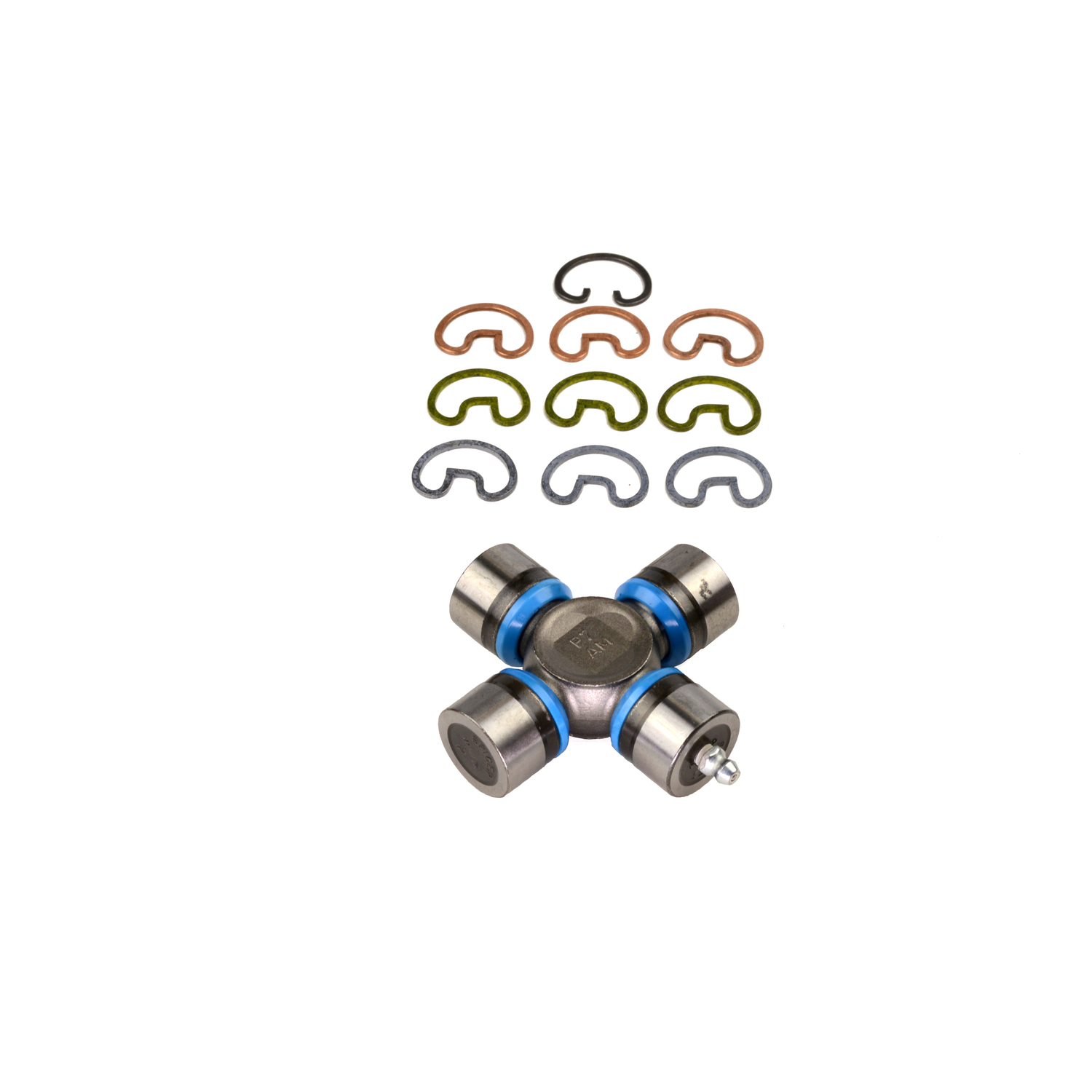

Universal Joint |
Features & Benefits
expand_more
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.
Application Summary
expand_more
American Motors 1967-74 Ambassador , 1968 American , 1978-83 Concord , 1980-88 Eagle , 1967 Marlin , 1975-80 Pacer , 1969 Rambler , 1979-83 Spirit , Aston Martin 1963-65 DB5 , 1965-70 DB6 , Buick 1973-75 Apollo , 1975-79 Skyhawk , Checker 1962-74 Aerobus , 1961-68 Marathon , 1972-74 Marathon , 1976-80 Marathon , 1952-64 Taxicab , 1972-74 Taxicab , Chevrolet 1959 3C , 1959 3D , 1959 3E , 1959 3F , 1955-75 Bel Air , 1973-74 Blazer , 1987-91 Blazer , 1975-81 C10 , 1960-67 C10 Panel , 1960-74 C10 Pickup , 1960-81 C10 Suburban , 1975-81 C20 , 1967 C20 Panel , 1960-74 C20 Pickup , 1960-81 C20 Suburban , 1978-81 C30 , 1967-74 Camaro , 1966-76 Caprice , 1964-72 Chevelle , 1962-68 Chevy II , 2004-11 Colorado , 1960-69 Corvair , 1953-74 Corvette , 1980-82 Corvette , 1964-72 El Camino , 1975-81 G10 , 1964-74 G10 Van , 1975-81 G20 , 1967-74 G20 Van , 1975-77 G30 , 1970-74 G30 Van , 1958-76 Impala , 1975-86 K10 , 1964-74 K10 Pickup , 1968-86 K10 Suburban , 1975-86 K20 , 1960-74 K20 Pickup , 1968-86 K20 Suburban , 1977-86 K30 , 1975-86 K5 Blazer , 1964-67 Malibu , 1970-72 Monte Carlo , 1975-80 Monza , 1969-79 Nova , 1975-78 P10 , 1980 P10 , 1960-67 P10 Series , 1968-74 P10 Van , 1975-78 P20 , 1980-81 P20 , 1960-67 P20 Series , 1968-74 P20 Van , 1978-83 P30 , 1990 P30 , 1961-66 P30 Series , 1991-93 S10 , 1989-94 S10 Blazer , 1954-58 Truck , 1987 V10 , 1987-88 V10 Suburban , 1989-91 V1500 Suburban , 1987-88 V20 Suburban , 1989-91 V2500 Suburban , 1987-88 V30 , 1989-91 V3500 , 1971-77 Vega , Daimler 1965-69 250 , 1963-67 SP250 , Dodge 1957 D100 Pickup , 1957 D200 Pickup , 1957 D300 Pickup , 1988-10 Dakota , 1998-06 Durango , 1994 Ram 1500 , 1994 Ram 2500 , 1994 Ram 3500 , 1974-77 Ramcharger , 1975-77 W100 , 1977 W150 , 1975-77 W200 , 1975-77 W300 , Ford 1986-97 Aerostar , 1970-78 Bronco , 1991 Bronco , 1990 Bronco II , 1992-94 Crown Victoria , 1957 Custom , 1957-60 Custom 300 , 1956 Customline , 1968 E-100 Econoline , 1970 E-100 Econoline , 1974-78 E-100 Econoline , 1975-78 E-100 Ec
