U & CV Joints & Drive Shaft

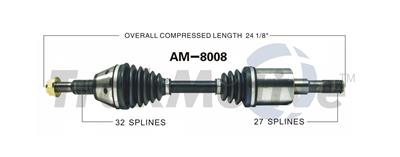

Cv axle shaft
Part # AM-8008 | Line Code: AXL
brandNameImage
brandNameImage

$165.99
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Male
Axle Nut Length (mm) 41
Axle Nut Length (in) 1 3/5
Overall Compressed Length (in) 24.09
Number Of Inboard Splines 27
Number of Outboard Splines 32
Axle Nut Thread Size M24*2
Number Of Outboard Joint Bolt Holes N/A
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
ABS Ring Type N/A
ABS Ring Tooth Count N/A
Axle Bolt Hex Size (mm) N/A
Number Of Inboard Joint Bolt Holes N/A
Axle Nut Hex Size (mm) 35.5
Axle Nut Locking Type Self-Lock
New Or Remanufactured New
Boot Material Neoprene
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Number of Bolt Holes N/A
Number Of Inboard Shaft Bolts N/A
Number Of Outboard Shaft Bolts N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
ABS Tone Ring Included No
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Shaft Connection Style Male
Inboard Bolt Length (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Spline
Axle Nut Height (in) 1
Overall Compressed Length (mm) 612
Axle Nut Height (mm) 23
Axle Nut Hex Size (in) 1 2/5
Axle Nut Included Yes
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Application Summary
expand_more

Dodge;Jeep
