Outboard Joint Type | Conventional |
Inboard Joint Type | Male |
ABS Tone Ring Included | Yes |

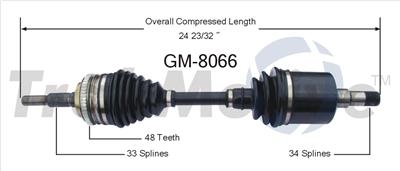

Overall Compressed Length (in) | 24.72 |
Axle Nut Height (mm) | 20 |
Axle Nut Length (mm) | 34 |
Number of Outboard Splines | 33 |
ABS Ring Type | Toothed |
Number Of Inboard Splines | 34 |
Number Of Outboard Joint Bolt Holes | N/A |
Axle Bolt Thread Size | N/A |
Axle Bolt Length (mm) | N/A |
Axle Nut Thread Size | M20*1.5 |
Axle Bolt Hex Size (mm) | N/A |
Number Of Inboard Joint Bolt Holes | N/A |
ABS Ring Tooth Count | 48 |
Axle Nut Hex Size (mm) | 29.4 |
Axle Nut Height (in) | 4/5 |
Axle Nut Locking Type | Self-Lock |
New Or Remanufactured | New |
Boot Material | Neoprene |
Inboard Bolt Head Size (in) | N/A |
Axle Nut Head Type | Hex |
Outboard Bolt Head Size (in) | N/A |
Number of Bolt Holes | N/A |
Number Of Inboard Shaft Bolts | N/A |
Number Of Outboard Shaft Bolts | N/A |
Outboard Joint Bolt Thread Size | N/A |
Inboard Bolt Length (in) | N/A |
Outboard Bolt Head Size (mm) | N/A |
Outboard Bolt Length (in) | N/A |
Inboard Bolt Head Type | N/A |
Inboard Bolt Thread Size | N/A |
Inboard Bolt Head Size (mm) | N/A |
Inboard Shaft Connection Style | Male |
Inboard Bolt Length (mm) | N/A |
Outboard Shaft Connection Style | Conventional |
Outboard Bolt Head Type | N/A |
Outboard Bolt Length (mm) | N/A |
Axle Nut Length (in) | 1 1/3 |
Axle Nut Hex Size (in) | 1 1/6 |
Overall Compressed Length (mm) | 628 |
Axle Nut Included | Yes |
Part Terminology | CV Axle Shaft |
